Hi-PerCarb®  Series 135 logo

Hi-PerCarb® | Series 135

p
m
k
n
s
h

The Series 135 drill features a high-performance flute design that enhances chip transportation and augments strength, enabling aggressive drilling. Furthermore, the drill incorporates a specialized 145° notched point that promotes self-centering, eliminating the need for a spot drill and effectively controlling chips, thus reducing thrust and deflection during drilling.

View Products
Where to Buy
Series 27 End Mill Group Picture

Features

Hi-PerCarb® Series 135 drill tip

HIGH PERFORMANCE FLUTE DESIGN

  • Efficiently transports chips
  • Increases strength for aggressive drilling
  • 4-Margin Design improves accuracy and surface finish for increased stability and rigidity
  • Secondary Flute improves coolant flow to point reducing friction along the drill body.

SPECIALIZED 145° NOTCHED POINT

  • Self centering eliminates need for spot drill and improves chip control decreasing drill thrust and deflection
  • Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates
Application diagrams

Coating

Ti-namite-a Logo

Excellent thermal and chemical resistance allows for dry cutting and improvements in performance of carbide. The coating has a high hardness giving great protection against abrasive wear and erosion.

Series Details

Lineup Details

  • Cutting Diameter: 1/64"-59/64" | 0,39 mm - 23,41 mm
  • Length of Cut: (3XD) 7/64"-4 3/8"
  • Length of Cut: (5XD) 5/64" - 2 11/16"
  • Overall Length: (3XD) 1 1/2"-7"
  • Overall Length: (5XD) 1 1/2"-6"
  • Shank Diameter: 1/8"-1"
  • Coating: Ti-NAMITE-A

Primary Material Applications

  • Steel ≤ 45 HRc
  • Stainless Steel ≤ 45HRc
  • High Temp Alloys
  • Titanium Alloys ≤ 45 HRc
  • Hardened Steel < 45 HRc

Industry Applications

aerospace icon

Aerospace

Medical icon

Medical

Power generation icon

Power Generation

Automotive  icon

Automotive

Mold and Die icon

Mold & Die

Casting and Foundries  icon

Casting & Foundries

General Engineering icon

General Engineering

Firearms  icon

Firearms

Resources

Download

 icon

Drilling Solutions Brochure

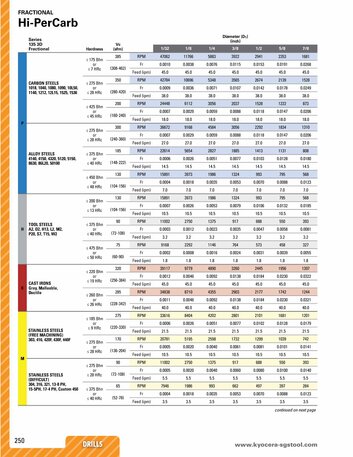

Series 135 Speeds & Feeds
