HIGH PRODUCTION

HRSA & STAINLESS STEEL HOLEMAKING

Hi-PerCarb® Series 143M-S Logo

Hi-PerCarb® | Series 143M-S

m
s

Hi-PerCarb® Series 143M-S features a coolant-through design, optimizing coolant flow to enhance tool longevity and aid in efficient chip evacuation. It is available in various designations (fractional, metric, decimal, number, and letter) with 3XD and 5XD lengths of cut. The drill is equipped with advanced features like eccentric single margin design to reduce frictional heat and minimize material adhesion.

View Products
Where to Buy
Series 27 End Mill Group Picture

Features

Hi-PerCarb® Series 143M-S Drill Bit end geometry image

ECCENTRIC 2-MARGIN DESIGN

  • Reduces frictional heat and minimizes material adhesion to the margins without weakening the drill
  • Lower contact with the hole surface improves hole finish and quality, especially in gummy workpiece materials

POINT DESIGN

  • Stabilizes on contact for exceptional hole size and cylindricity
  • Low thrust force reduces machine power requirement and extends tool life
  • Computer controlled edge hone protects against chip damage

COOLANT THROUGH DESIGN

  • The modified coolant hole exit increases flow for improved chip evacuation and extended tool life

Coating

Ti-Namite-A logo

Provides exceptional wear and erosion resistance when drilling heat resisting alloys like Inconel, stainless steel, and titanium.

Series Details

Lineup Details

  • Cutting Diameter: 1/8"-3/4" | 3,0 mm - 19,05 mm
  • Length of Cut: 36,0 mm - 50,0 mm
  • Overall Length: 62,0 mm - 153,0 mm
  • Flute Length: 20,0 mm - 101,0 mm
  • Shank Diameter: 6,0 mm - 20,0 mm
  • Coating: Ti-NAMITE®-A

Primary Material Applications

  • Stainless Steel ≤ 45HRc
  • High Temp Alloys
  • Titanium Alloys ≤ 45 HRc

Industry Applications

General Engineering Icon

General Engineering

Casting and foundries Icon

Casting & Foundries

Mold and Die Icon

Mold & Die

Automotive Icon

Automotive

Power generation Icon

Power Generation

Medical Icon

Medical

Aerospace Icon

Aerospace

Firearms Icon

Firearms

Secondary Material Applications

  • Steel ≤ 45HRc
  • Cast Iron ≥ 45 HRc
  • Non-Ferrous

Resources

Download

Drilling Solutions Brochure cover image

Drilling Solutions Brochure

Download

Hi-PerCarb® Series 143M-S speed and feed brochure cover image

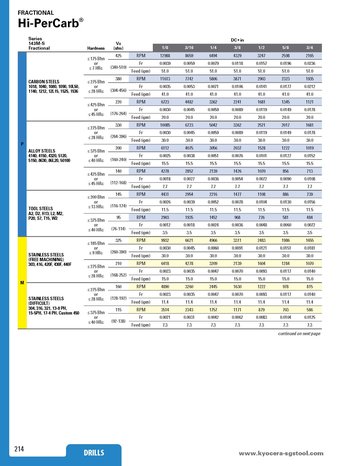

Hi-PerCarb 143M-S Speeds & Feeds
