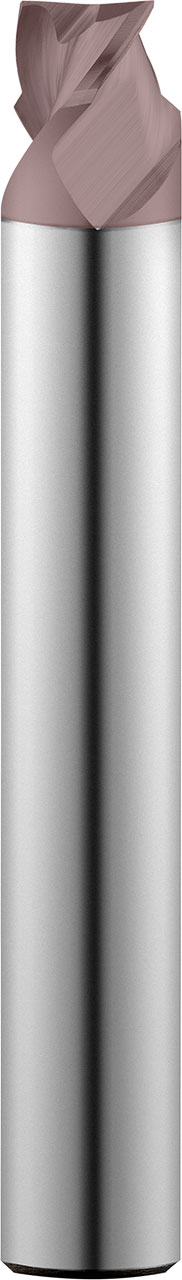

0.2100" Dia, 3 Flute, Corner Radius End Mill - 33361
SERIES: PRT
Picatinny Rail Tools
0.2100" Dia, 0.1180" LOC, 1/4" Shank Dia, 0.0100" Radius, 3 Flute, 35 Degree Helix, Ti-NAMITE-M (TM) Coated, Series PRT, Picatinny Rail Tools, Corner Radius End Mill - 33361
Feature & Benefits
Open Flute design improves chip removal at high feed rates
Specially engineered flute shape for improved chip control
Circular land improves surface finish and chatter supression
Symmetrical end gashing improves balance in high speed operations
Meets MIL-STD 1913
| Series Description | Picatinny Rail Tools |
|---|---|
| High Performance | Yes |
| End Configuration | Corner Radius |
| Unit (inch/mm) | inch |
| Number of Flutes | 3 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(S) High Temp Alloy |
| Cutting Diameter (DC) (Decimal Inch) | 0.2100 |
| Cutting Diameter (DC) (mm) | 5.33 |
| Shank Diameter (DCON) (Decimal Inch) | 0.2500 |
| Shank Diameter (DCON) (mm) | 6.35 |
| Length of Cut (APMX) (Decimal Inch) | 0.1180 |
| Length of Cut (APMX) (mm) | 3.00 |
| Overall Length (LF) (Decimal Inch) | 1.7500 |
| Overall Length (LF) (Fractional Inch) | 1-3/4 |
| Overall Length (LF) (mm) | 44.45 |
| Corner Radius (RE) (Decimal Inch) | 0.0100 |
| Corner Radius (RE) (mm) | 0.25 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0080/-0.0000 |
| Cutting Diameter (DC) Tolerance (mm) | +0.203/-0.000 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0020/-0.0020 |
| Corner Radius (RE) Tolerance (mm) | +0.050/-0.050 |
| Length of Cut (APMX) Tolerance (Decimal Inch) | +0.0060/-0.0000 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | TM (Ti-NAMITE-M) |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Side Profile | Picatinny Recoil Groove |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 35 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.0490 |
| Series | PRT |
| Weldon Flat | No |
| US Stock | 17 |
| Length of Cut (APMX) Tolerance (mm) | +0.0152/-0.000 |
| Shank Diameter (DCON) (Fractional Inch) | 1/4 |
| Tool Length | Stub |
Alternate Products

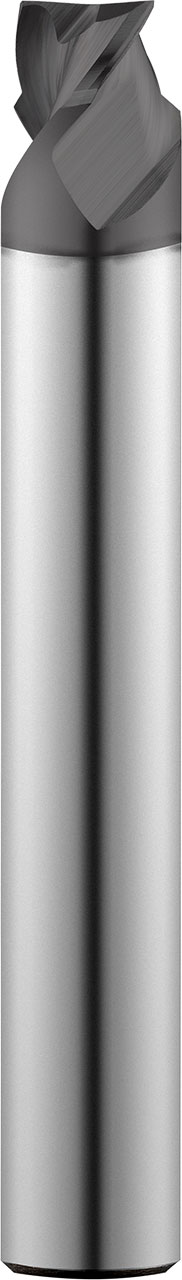

0.2100" Dia, 0.1180" LOC, 1/4" Shank Dia, 0.0100" Radius, 3 Flute, 35 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series PRT, Picatinny Rail Tools, Corner Radius End Mill - 33360
