1.00mm Dia, 140 Degree Point, Solid Carbide Drill - 06031
SERIES: M814
Micro Drill
1.00mm Dia, 140 Degree Point, 4.00mm Shank Dia, 64.00mm OAL, 2 Flute, 15xD, Coolant-Through, Ti-NAMITE-Cr (AlCrN) Coated, Series M814, Micro, Solid Carbide Drill - 06031
Feature & Benefits
Split point and double margin design provide superior hole finish and size control
Coolant hole feature allows straight through drilling without a peck cycle
Proprietary high performance coating and mirror polished fluting increase tool life and productivity in moderate to difficult workpiece materials
Application specific sub-micron grain carbide designed specifically for micro tool applications
Manufactured in accordance with KSPT ISO certified quality procedures
Series Description | Micro Drill |
---|---|
High Performance | No |
Unit (inch/mm) | mm |
Number of Flutes | 2 |
Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
Secondary Workpiece Material | (H) Hardened Materials |
Reach (xD) | 15xD |
Size | 1.00mm |

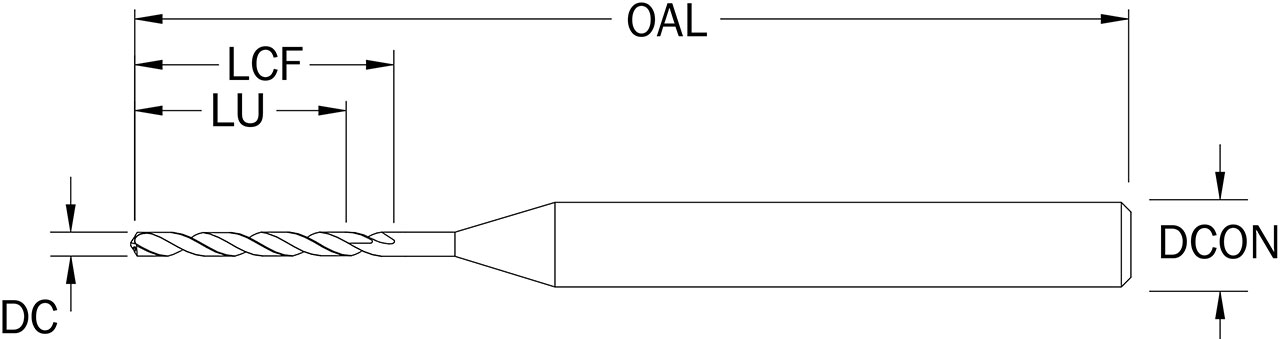

Cutting Diameter (DC) (Decimal Inch) | 0.0394 |
Cutting Diameter (DC) (mm) | 1.00 |
Shank Diameter (DCON) (Decimal Inch) | 0.1575 |
Shank Diameter (DCON) (mm) | 4.00 |
Flute Length (LCF) (Decimal Inch) | 0.7992 |
Flute Length (LCF) (mm) | 20.30 |
Overall Length (OAL) (Decimal Inch) | 2.5197 |
Overall Length (OAL) (mm) | 64.00 |
Point Angle (Degree) | 140 |
Cutting Diameter (DC) Tolerance (Decimal Inch) | +.00000 / +.00600 |
Cutting Diameter (DC) Tolerance (mm) | +.0000 / +.1524 |
Shank Diameter (DCON) Tolerance (ISO) | h6 |
Shank Type | Straight |
Coolant Option | Internal Coolant |
Additional Geometry | Right Hand Cut Direction (RHC) |
Helix Angle | Right Spiral |
Helix Angle (Degree) | 28 |
Variable Helix | No |
Center Cutting | No |
Chip Breaker | No |
Number of Margins | 1 |
KPT Micro Crossover (Old Material Number) | 8525473 |
KPT Micro Crossover (Part Number) | 814-0394L799 |
KPT Micro Crossover Type | Direct Match |
Shipping Weight | 0.0245 |
Series | M814 |
Weldon Flat | No |
US Stock | 8 |
Profile Angle (Degree) | 15 |
Usable Length (LU) (Decimal Inch) | 0.5906 |
Usable Length (LU) (mm) | 15.00 |
Coating Description | AlCrN (Ti-NAMITE-Cr) |
