1/2" Dia, 10 Flute, Router - 72966

SERIES: 31

Series CCR CFRP Coarse Cut Router

1/2" Dia, 1-1/2" LOC, 3-1/2" OAL, 1/2" Shank Dia, 10 Flute, 15 Degree Helix, Uncoated, Series 31, Series CCR CFRP Coarse Cut Router - 72966

Feature & Benefits

Multi-Flute Design

Unique Clearance Grind

Available With Or Without End Cut

Total Available U.S. :189

Find Distributor

Series Description	Series CCR CFRP Coarse Cut Router
High Performance	Yes
End Configuration	Square End
Tool Length	Regular
Unit (inch/mm)	inch
Number of Flutes	10
Primary Workpiece Material	(N) Non-Ferrous Materials
Cutting Diameter (DC) (Decimal Inch)	0.5000
Cutting Diameter (DC) (Fractional Inch)	1/2
Cutting Diameter (DC) (mm)	12.70
Shank Diameter (DCON) (Decimal Inch)	0.5000
Shank Diameter (DCON) (mm)	12.70
Length of Cut (APMX) (Decimal Inch)	1.5000
Length of Cut (APMX) (Fractional Inch)	1-1/2
Length of Cut (APMX) (mm)	38.10
Overall Length (LF) (Decimal Inch)	3.5000
Overall Length (LF) (Fractional Inch)	3-1/2
Overall Length (LF) (mm)	88.90
Shank Length (LS) (Decimal Inch)	2.0000
Shank Length (LS) (Fractional Inch)	2
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0050
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.130
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Helix Angle	Right Spiral
Helix Angle (Degree)	15
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	0.3160
Series	31
Weldon Flat	No
US Stock	189
Shank Length (LS) (mm)	50.80
Shank Diameter (DCON) (Fractional Inch)	1/2
Coating Description	Bright/Uncoated

Alternate Products

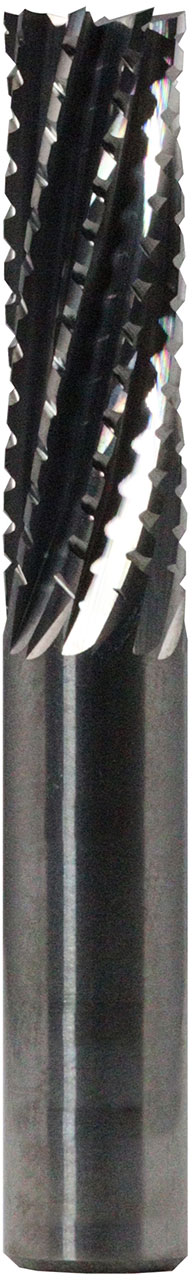

1/2" Dia, 10 Flute, Router - 72967

1/2" Dia, 1-1/2" LOC, 3-1/2" OAL, 1/2" Shank Dia, 10 Flute, 15 Degree Helix, Di-NAMITE (Diamond) Coated, Series 31, Series CCR CFRP Coarse Cut Router - 72967

Total Available U.S. :3
