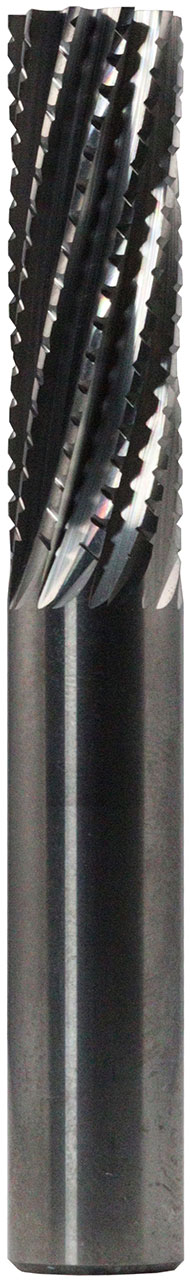

1/2" Dia, 10 Flute, Router - 72968
SERIES: 31
Series CCR CFRP Coarse Cut Router
1/2" Dia, 1-1/2" LOC, 3-1/2" OAL, 1/2" Shank Dia, 10 Flute, 15 Degree Helix, Uncoated, Series 31, Series CCR CFRP Coarse Cut Router - 72968
Feature & Benefits
Multi-Flute Design
Unique Clearance Grind
Available With Or Without End Cut
Series Description | Series CCR CFRP Coarse Cut Router |
---|---|
High Performance | Yes |
End Configuration | Square End |
Tool Length | Regular |
Unit (inch/mm) | inch |
Number of Flutes | 10 |
Primary Workpiece Material | (N) Non-Ferrous Materials |

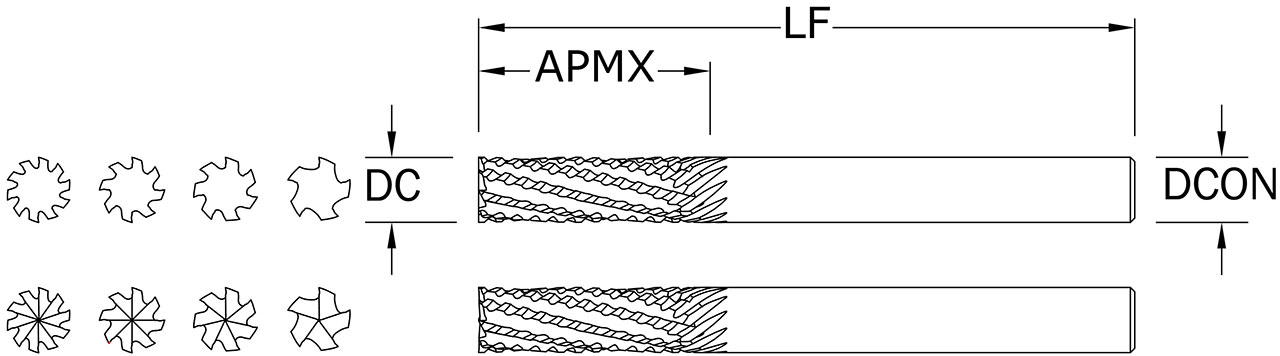

Cutting Diameter (DC) (Decimal Inch) | 0.5000 |
Cutting Diameter (DC) (Fractional Inch) | 1/2 |
Cutting Diameter (DC) (mm) | 12.70 |
Shank Diameter (DCON) (Decimal Inch) | 0.5000 |
Shank Diameter (DCON) (mm) | 12.70 |
Length of Cut (APMX) (Decimal Inch) | 1.5000 |
Length of Cut (APMX) (Fractional Inch) | 1-1/2 |
Length of Cut (APMX) (mm) | 38.10 |
Overall Length (LF) (Decimal Inch) | 3.5000 |
Overall Length (LF) (Fractional Inch) | 3-1/2 |
Overall Length (LF) (mm) | 88.90 |
Shank Length (LS) (Decimal Inch) | 2.0000 |
Shank Length (LS) (Fractional Inch) | 2 |
Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0050 |
Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.130 |
Shank Diameter (DCON) Tolerance (ISO) | h6 |
Shank Type | Straight |
Coolant Option | External Coolant |
Additional Geometry | Right Hand Cut Direction (RHC) |
Rake Angle | Positive |
Helix Angle | Right Spiral |
Helix Angle (Degree) | 15 |
Variable Helix | No |
Center Cutting | No |
Chip Breaker | No |
Shipping Weight | 0.3240 |
Series | 31 |
Weldon Flat | No |
US Stock | 18 |
Shank Length (LS) (mm) | 50.80 |
Shank Diameter (DCON) (Fractional Inch) | 1/2 |
Coating Description | Bright/Uncoated |
