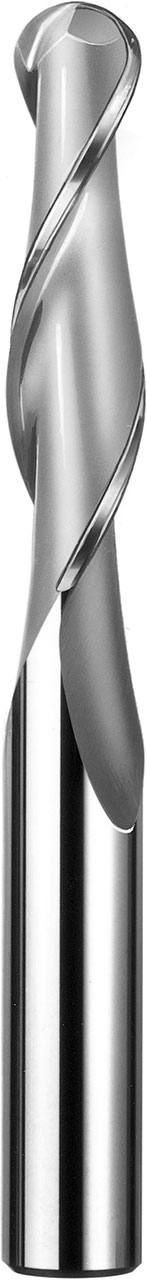

1/2" Dia, 2 Flute, Ball Nose End Mill - 31896
SERIES: L3B
General Application End Mill
1/2" Dia, 2" LOC, 1/2" Shank Dia, 2 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series L3B, Ball Nose End Mill - 31896
Series Description | General Application End Mill |
---|---|
High Performance | No |
End Configuration | Ball Nose |
Unit (inch/mm) | inch |
Number of Flutes | 2 |
Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
Secondary Workpiece Material | (H) Hardened Materials |
Cutting Diameter (DC) (Decimal Inch) | 0.5000 |
Cutting Diameter (DC) (Fractional Inch) | 1/2 |
Cutting Diameter (DC) (mm) | 12.70 |
Shank Diameter (DCON) (Decimal Inch) | 0.5000 |
Shank Diameter (DCON) (mm) | 12.70 |
Length of Cut (APMX) (Decimal Inch) | 2.0000 |
Length of Cut (APMX) (Fractional Inch) | 2 |
Length of Cut (APMX) (mm) | 50.80 |
Overall Length (LF) (Decimal Inch) | 4.5000 |
Overall Length (LF) (Fractional Inch) | 4-1/2 |
Overall Length (LF) (mm) | 114.30 |
Shank Length (LS) (Decimal Inch) | 2.5000 |
Shank Length (LS) (Fractional Inch) | 2-1/2 |
Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
Shank Diameter (DCON) Tolerance (ISO) | h6 |
Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0010 |
Corner Radius (RE) Tolerance (mm) | +0.000/-0.025 |
Shank Type | Straight |
Coolant Option | External Coolant |
Additional Geometry | Right Hand Cut Direction (RHC) |
Rake Angle | Positive |
Helix Angle | Right Spiral |
Helix Angle (Degree) | 30 |
Variable Helix | No |
Center Cutting | Yes |
Chip Breaker | No |
Shipping Weight | 0.3670 |
Series | L3B |
Weldon Flat | No |
US Stock | 0 |
Shank Length (LS) (mm) | 63.50 |
Shank Diameter (DCON) (Fractional Inch) | 1/2 |
Tool Length | Long |
Coating Description | AlTiN (Ti-NAMITE-A) |
