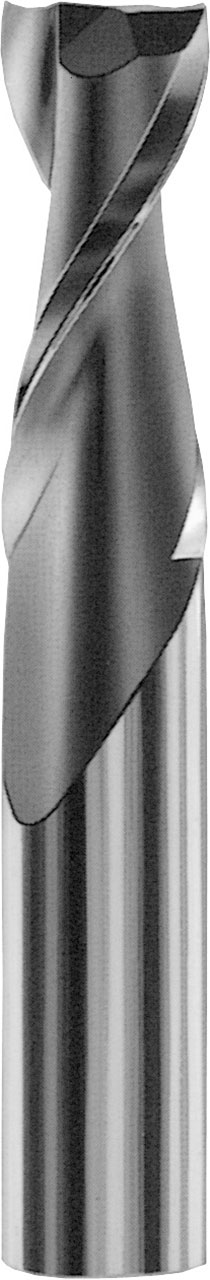

1/8" Dia, 2 Flute, Router - 90001
SERIES: 21S
Wood Router Up Cut
1/8" Dia, 1/2" LOC, 2" OAL, 1/4" Shank Dia, 2 Flute, 35 Degree Helix, Uncoated, Series 21S, Wood Router Up Cut - 90001
| Series Description | Wood Router Up Cut |
|---|---|
| High Performance | No |
| End Configuration | Square End |
| Tool Length | Regular |
| Unit (inch/mm) | inch |
| Number of Flutes | 2 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |

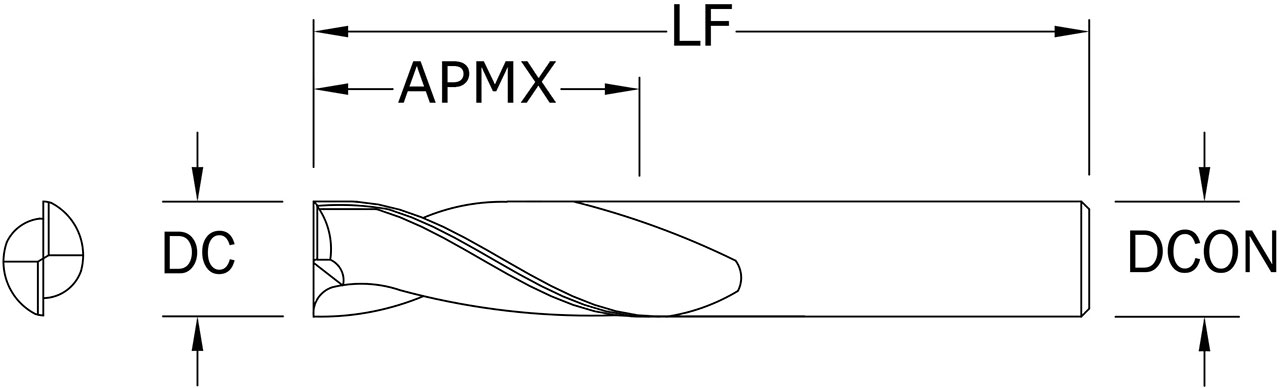

| Cutting Diameter (DC) (Decimal Inch) | 0.1250 |
| Cutting Diameter (DC) (Fractional Inch) | 1/8 |
| Cutting Diameter (DC) (mm) | 3.18 |
| Shank Diameter (DCON) (Decimal Inch) | 0.2500 |
| Shank Diameter (DCON) (mm) | 6.35 |
| Length of Cut (APMX) (Decimal Inch) | 0.5000 |
| Length of Cut (APMX) (Fractional Inch) | 1/2 |
| Length of Cut (APMX) (mm) | 12.70 |
| Overall Length (LF) (Decimal Inch) | 2.0000 |
| Overall Length (LF) (Fractional Inch) | 2 |
| Overall Length (LF) (mm) | 50.80 |
| Shank Length (LS) (Decimal Inch) | 1.5000 |
| Shank Length (LS) (Fractional Inch) | 1-1/2 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0030 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.080 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 35 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.0380 |
| Series | 21S |
| Weldon Flat | No |
| US Stock | 5 |
| Shank Length (LS) (mm) | 38.10 |
| Shank Diameter (DCON) (Fractional Inch) | 1/4 |
| Coating Description | Bright/Uncoated |
