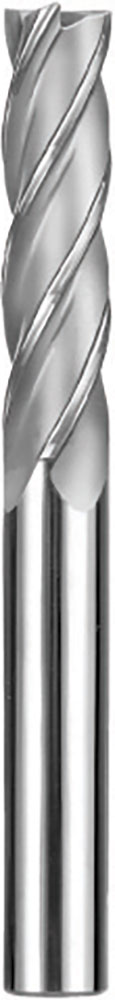

1/8" Dia, 4 Flute, Square End End Mill - 33141
SERIES: L1S
General Application End Mill
1/8" Dia, 3/4" LOC, 1/8" Shank Dia, 4 Flute, 30 Degree Helix, Uncoated, Series L1S, Square End End Mill - 33141
| Series Description | General Application End Mill |
|---|---|
| High Performance | No |
| End Configuration | Square End |
| Unit (inch/mm) | inch |
| Number of Flutes | 4 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.1250 |
| Cutting Diameter (DC) (Fractional Inch) | 1/8 |
| Cutting Diameter (DC) (mm) | 3.18 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1250 |
| Shank Diameter (DCON) (mm) | 3.18 |
| Length of Cut (APMX) (Decimal Inch) | 0.7500 |
| Length of Cut (APMX) (Fractional Inch) | 3/4 |
| Length of Cut (APMX) (mm) | 19.05 |
| Overall Length (LF) (Decimal Inch) | 2.2500 |
| Overall Length (LF) (Fractional Inch) | 2-1/4 |
| Overall Length (LF) (mm) | 57.15 |
| Shank Length (LS) (Decimal Inch) | 1.5000 |
| Shank Length (LS) (Fractional Inch) | 1-1/2 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.0180 |
| Series | L1S |
| Weldon Flat | No |
| US Stock | 172 |
| Shank Length (LS) (mm) | 38.10 |
| Shank Diameter (DCON) (Fractional Inch) | 1/8 |
| Tool Length | Extra Long |
| Coating Description | Bright/Uncoated |
Alternate Products
1/8" Dia, 3/4" LOC, 1/8" Shank Dia, 4 Flute, 30 Degree Helix, Amorphous Diamond Coated, Series L1S, Square End End Mill - 93324
U.S. stocked items ship next day
Total Available U.S. :0
1/8" Dia, 3/4" LOC, 1/8" Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series L1S, Square End End Mill - 31747
U.S. stocked items ship next day
Total Available U.S. :246

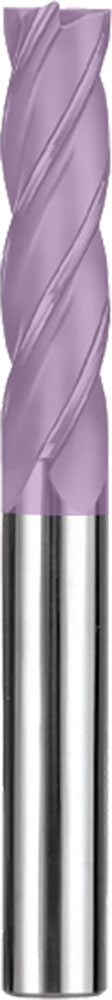

1/8" Dia, 3/4" LOC, 1/8" Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-C (TiCN) Coated, Series L1S, Square End End Mill - 31737
