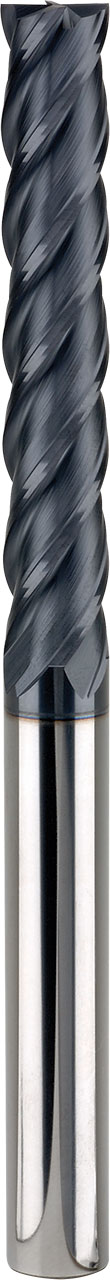

1/8" Dia, 4 Flute, Square End End Mill - 70470

SERIES: 7S

Series 7

1/8" Dia, 3/4" LOC, 1/8" Shank Dia, 4 Flute, 38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series 7S, Series 7, Square End End Mill - 70470

Feature & Benefits

Variable pitch allows for improved chatter suppression along with improved surface finish and enhanced tool life

Raised land and increased core diameter designed to enhance tool life and decrease tool deflection

Recommended for materials ≤ 45 HRc (≤ 420 Bhn)

Total Available U.S. :72

Series Description	Series 7
High Performance	Yes
End Configuration	Square End
Unit (inch/mm)	inch
Number of Flutes	4
Primary Workpiece Material	(P) Steel\|(M) Stainless Steel\|(K) Cast Iron\|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials

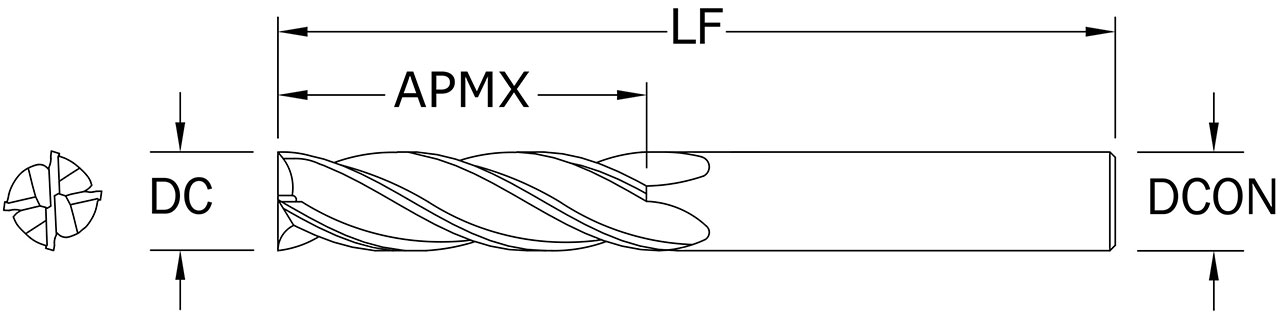

Cutting Diameter (DC) (Decimal Inch)	0.1250
Cutting Diameter (DC) (Fractional Inch)	1/8
Cutting Diameter (DC) (mm)	3.18
Shank Diameter (DCON) (Decimal Inch)	0.1250
Shank Diameter (DCON) (mm)	3.18
Length of Cut (APMX) (Decimal Inch)	0.7500
Length of Cut (APMX) (Fractional Inch)	3/4
Length of Cut (APMX) (mm)	19.05
Overall Length (LF) (Decimal Inch)	2.2500
Overall Length (LF) (Fractional Inch)	2-1/4
Overall Length (LF) (mm)	57.15
Shank Length (LS) (Decimal Inch)	1.5000
Shank Length (LS) (Fractional Inch)	1-1/2
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0020
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.050
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Helix Angle	Right Spiral
Helix Angle (Degree)	38
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	0.0200
Series	7S
Weldon Flat	No
US Stock	72
Shank Length (LS) (mm)	38.10
Shank Diameter (DCON) (Fractional Inch)	1/8
Tool Length	Extra Long
Coating Description	TX (Ti-NAMITE-X)
Flute Type	Spiral
