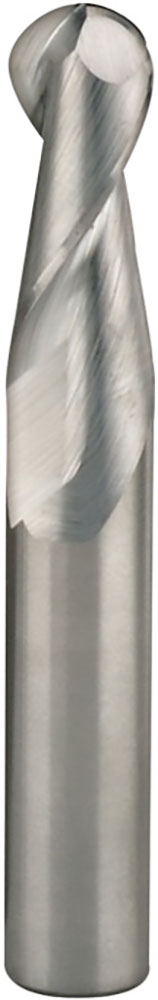

1" Dia, 2 Flute, Ball Nose End Mill - 34677
SERIES: 47B
S-Carb
1" Dia, 2" LOC, 1" Shank Dia, 2 Flute, 35 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 47B, S-Carb, Ball Nose End Mill - 34677
Feature & Benefits
Circular land reduces edge aggressiveness for varied speed and feed rates
2 Flutes effectively manage the large size and volume of chips produced during the aggressive machining process
Excellent balance at high speeds and aggressive plunging capability
Ball end design ideal for finishing operations in complex workpieces
Recommended for materials ≤ 150 Bhn (≤ 7 HRc)
Series Description | S-Carb |
---|---|
High Performance | Yes |
End Configuration | Ball Nose |
Unit (inch/mm) | inch |
Number of Flutes | 2 |
Primary Workpiece Material | (N) Non-Ferrous Materials |
Secondary Workpiece Material | Plastics & Composites |

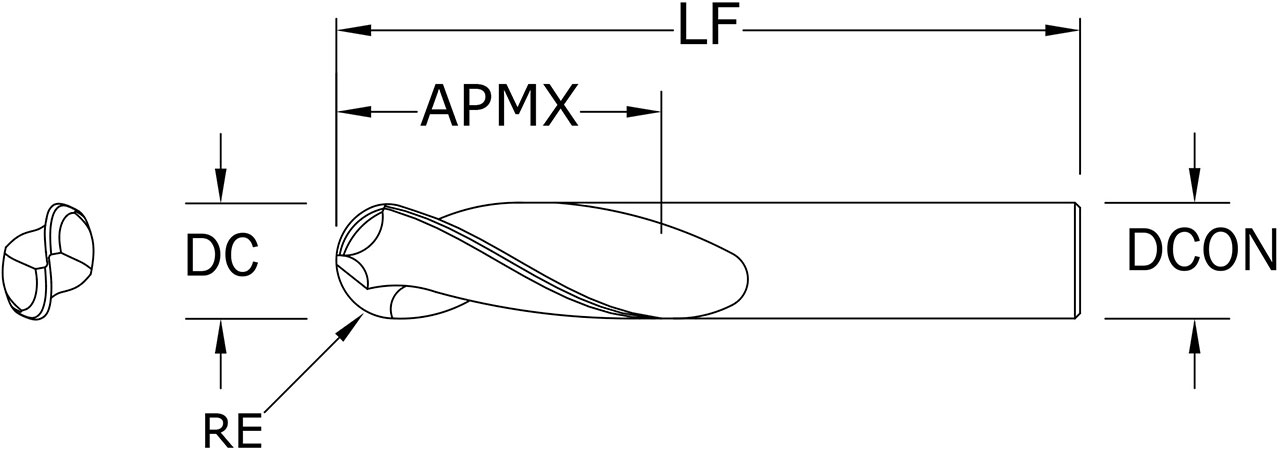

Cutting Diameter (DC) (Decimal Inch) | 1.0000 |
Cutting Diameter (DC) (Fractional Inch) | 1 |
Cutting Diameter (DC) (mm) | 25.40 |
Shank Diameter (DCON) (Decimal Inch) | 1.0000 |
Shank Diameter (DCON) (mm) | 25.40 |
Length of Cut (APMX) (Decimal Inch) | 2.0000 |
Length of Cut (APMX) (Fractional Inch) | 2 |
Length of Cut (APMX) (mm) | 50.80 |
Overall Length (LF) (Decimal Inch) | 4.5000 |
Overall Length (LF) (Fractional Inch) | 4-1/2 |
Overall Length (LF) (mm) | 114.30 |
Shank Length (LS) (Decimal Inch) | 2.5000 |
Shank Length (LS) (Fractional Inch) | 2-1/2 |
Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.00051 |
Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.013 |
Shank Diameter (DCON) Tolerance (ISO) | h6 |
Corner Radius (RE) Tolerance (Decimal Inch) | +0.0005/-0.0005 |
Corner Radius (RE) Tolerance (mm) | +0.013/-0.013 |
Shank Type | Straight |
Coolant Option | External Coolant |
Additional Geometry | Right Hand Cut Direction (RHC) |
Rake Angle | Positive |
Helix Angle | Right Spiral |
Helix Angle (Degree) | 35 |
Variable Helix | No |
Center Cutting | Yes |
Chip Breaker | No |
Shipping Weight | 1.3800 |
Series | 47B |
Weldon Flat | No |
US Stock | 0 |
Shank Length (LS) (mm) | 63.50 |
Shank Diameter (DCON) (Fractional Inch) | 1 |
Tool Length | Stub |
Coating Description | TIB2 (Ti-NAMITE-B) |
