1" Dia, 2 Flute, Square End End Mill - 32069
SERIES: 44S
Ski-Carb
1" Dia, 4" LOC, 1" Shank Dia, 2 Flute, 45 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 44S, Ski-Carb, Square End End Mill - 32069
Feature & Benefits
Polished ski land with primary and secondary flute wall design minimizes chip interference by directing chips away from secondary flute
Circular land allows for increased control at various speed and feed rates ultimately reducing chatter
Recommended for materials ≤ 150 Bhn (≤ 7 HRc)
| Series Description | Ski-Carb |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Unit (inch/mm) | inch |
| Number of Flutes | 2 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |
| Secondary Workpiece Material | Plastics & Composites |

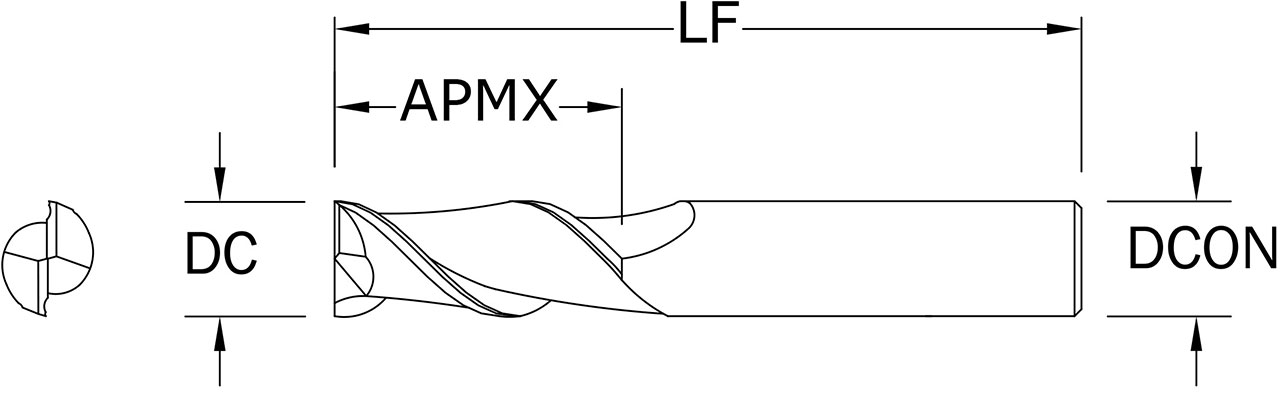

| Cutting Diameter (DC) (Decimal Inch) | 1.0000 |
| Cutting Diameter (DC) (Fractional Inch) | 1 |
| Cutting Diameter (DC) (mm) | 25.40 |
| Shank Diameter (DCON) (Decimal Inch) | 1.0000 |
| Shank Diameter (DCON) (mm) | 25.40 |
| Length of Cut (APMX) (Decimal Inch) | 4.0000 |
| Length of Cut (APMX) (Fractional Inch) | 4 |
| Length of Cut (APMX) (mm) | 101.60 |
| Overall Length (LF) (Decimal Inch) | 6.5000 |
| Overall Length (LF) (Fractional Inch) | 6-1/2 |
| Overall Length (LF) (mm) | 165.10 |
| Shank Length (LS) (Decimal Inch) | 2.5000 |
| Shank Length (LS) (Fractional Inch) | 2-1/2 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.00051 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.013 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 45 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 1.5250 |
| Series | 44S |
| Weldon Flat | No |
| US Stock | 0 |
| Shank Length (LS) (mm) | 63.50 |
| Shank Diameter (DCON) (Fractional Inch) | 1 |
| Tool Length | Long |
| Coating Description | TIB2 (Ti-NAMITE-B) |
Alternate Products
1" Dia, 4" LOC, 1" Shank Dia, 2 Flute, 45 Degree Helix, Uncoated, Series 44S, Ski-Carb, Square End End Mill - 32049
U.S. stocked items ship next day
Total Available U.S. :2
1" Dia, 4" LOC, 1" Shank Dia, 2 Flute, 45 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 44S, Ski-Carb, Square End End Mill - 34534
U.S. stocked items ship next day
Total Available U.S. :0

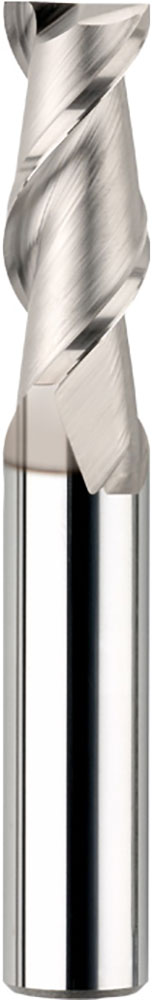

1" Dia, 4" LOC, 1" Shank Dia, 2 Flute, 45 Degree Helix, Uncoated, Series 44S, Ski-Carb, Square End End Mill - 34533
