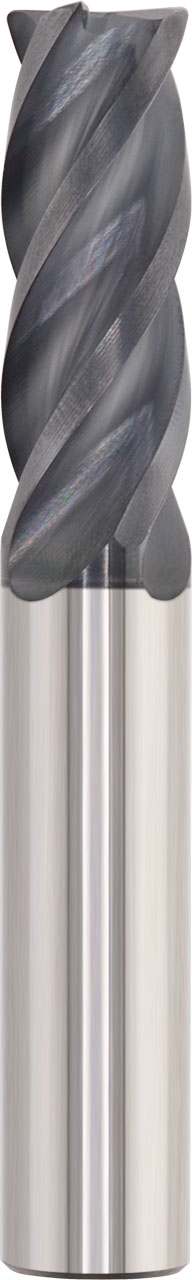

10.00mm Dia, 4 Flute, Corner Radius End Mill - 47817
SERIES: ZR
Z-Carb-XPR
10.00mm Dia, 22.00mm LOC, 10.00mm Shank Dia, 0.50mm Radius, 4 Flute, 34-38 Degree Helix, TX (Ti-NAMITE-X) Coated, Series ZR, Z-Carb-XPR Series, Corner Radius End Mill - 47817
Feature & Benefits
Open end tooth design to facilitate a smooth and efficient chip evacuation when used in axial applications such as Plunging, Ramping, & Helical Interpolation
Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
Unequal helix design and Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
End teeth featuring a wiper flat to increase corner strength and significantly improve workpiece floor surface finish
Optimized tool life and high metal removal rates through Kyocera proprietary PVD Ti-NAMITE-X (TX) coating
Enhanced corner geometry with tight tolerance corner radii
| Series | ZR |
|---|---|
| Series Description | Z-Carb-XPR |
| High Performance | Yes |
| End Configuration | Corner Radius |
| Tool Length | Regular |
| Unit (inch/mm) | mm |
| Number of Flutes | 4 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.3937 |
| Cutting Diameter (DC) (mm) | 10.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.3937 |
| Shank Diameter (DCON) (mm) | 10.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.8661 |
| Length of Cut (APMX) (mm) | 22.00 |
| Overall Length (LF) (Decimal Inch) | 2.8346 |
| Overall Length (LF) (mm) | 72.00 |
| Corner Radius (RE) (Decimal Inch) | 0.0197 |
| Corner Radius (RE) (mm) | 0.50 |
| Shank Length (LS) (Decimal Inch) | 1.9640 |
| Shank Length (LS) (mm) | 49.89 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0016 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.040 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Corner Radius (RE) Tolerance (mm) | +0.000/-0.050 |
| Shank Type | Straight |
| Weldon Flat | No |
| Coolant Option | External Coolant |
| Coating Description | TX (Ti-NAMITE-X) |
| Additional Geometry | Flute Spacing Unequal / Right Hand Cut Direction (RHC) |
| Rake Angle | Variable |
| Helix Angle | Variable Right Spiral |
| Helix Angle (Degree) | 34-38 |
| Variable Helix | Yes |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.1510 |
| US Stock | 25 |
| Shank Diameter (DCON) Tolerance (Decimal Inch) | +0.00000/-0.00035 |
| Shank Diameter (DCON) Tolerance (mm) | +0.0000/-0.0089 |
Alternate Products
10.00mm Dia, 22.00mm LOC, 10.00mm Shank Dia, 0.50mm Radius, 4 Flute, 35-38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series ZPMC, Z-Carb-AP, Corner Radius End Mill - 46858
U.S. stocked items ship next day
Total Available U.S. :117
10.00mm Dia, 22.00mm LOC, 10.00mm Shank Dia, 0.50mm Radius, 4 Flute, 38-41 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series ZH1M, Z-Carb-HTA, Corner Radius End Mill - 46456
U.S. stocked items ship next day
Total Available U.S. :12

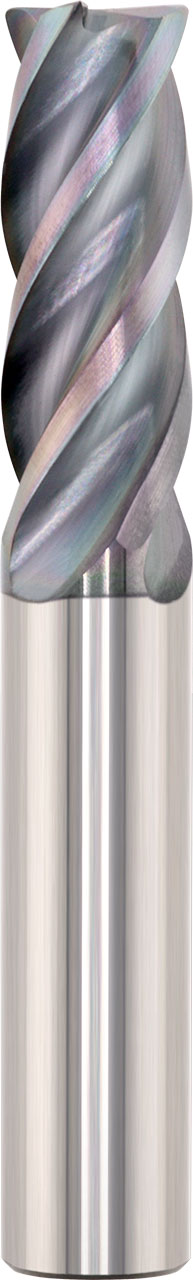

10.00mm Dia, 22.00mm LOC, 10.00mm Shank Dia, 0.50mm Radius, 4 Flute, 34-38 Degree Helix, MN (MEGACOAT NANO) Coated, Series ZR, Z-Carb-XPR Series, Corner Radius End Mill - 47816
