16.00mm Dia, 4 Flute, Square End End Mill - 83065
SERIES: 27M
Series 27 - CFRP Slow Helix
16.00mm Dia, 48.00mm LOC, 16.00mm Shank Dia, 4 Flute, Variable Helix, Di-NAMITE (Diamond) Coated, Series 27M, Series 27 - CFRP Slow Helix, Square End End Mill - 83065
Feature & Benefits
Slow helix design adds strength to the edge allowing ease for milling highly abrasive materials
Two levels of chatter suppression: variable helix and indexing
Excels at roughing (slotting, profiling) and finishing in a variety of plastics and composites
| Series Description | Series 27 - CFRP Slow Helix |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Unit (inch/mm) | mm |
| Number of Flutes | 4 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |

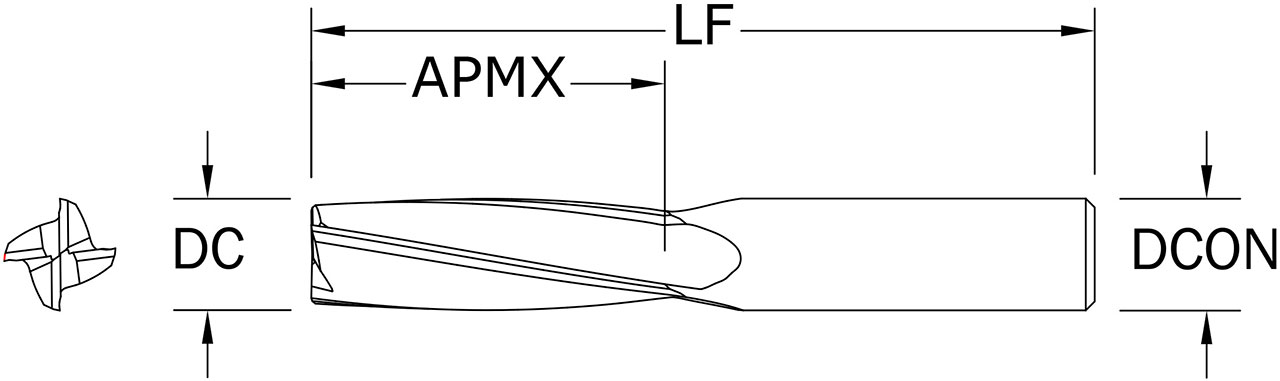

| Cutting Diameter (DC) (Decimal Inch) | 0.6299 |
| Cutting Diameter (DC) (mm) | 16.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.6299 |
| Shank Diameter (DCON) (mm) | 16.00 |
| Length of Cut (APMX) (Decimal Inch) | 1.8898 |
| Length of Cut (APMX) (mm) | 48.00 |
| Overall Length (LF) (Decimal Inch) | 4.5276 |
| Overall Length (LF) (mm) | 115.00 |
| Shank Length (LS) (Decimal Inch) | 2.6378 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0030 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.080 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 10 - 12 |
| Variable Helix | Yes |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 0.6640 |
| Series | 27M |
| Weldon Flat | No |
| US Stock | 0 |
| Shank Length (LS) (mm) | 67.00 |
| Tool Length | Long |
| Coating Description | Diamond (Di-NAMITE) |
Alternate Products
16.00mm Dia, 48.00mm LOC, 16.00mm Shank Dia, 4 Flute, Variable Helix, Uncoated, Series 27M, Series 27 - CFRP Slow Helix, Square End End Mill - 83064
U.S. stocked items ship next day
Total Available U.S. :0
