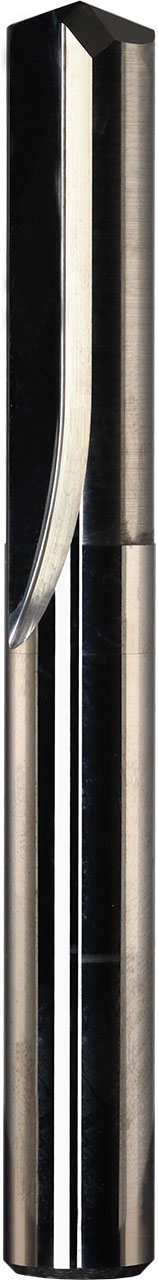

23/64" Dia, 140 Degree Point, Solid Carbide Drill - 56155
SERIES: 106
General Application Drill - Straight Flute
23/64" Dia, 140 Degree Point, 23/64" Shank Dia, 3-1/16" OAL, 2 Flute, 3xD, Ti-NAMITE-A (AlTiN) Coated, Series 106, Straight Flute, Solid Carbide Drill - 56155
| Series Description | General Application Drill - Straight Flute |
|---|---|
| Unit (inch/mm) | inch |
| Number of Flutes | 2 |
| Primary Workpiece Material | (P) Steel|(K) Cast Iron |
| Secondary Workpiece Material | (H) Hardened Materials |
| Reach (xD) | 3xD |
| Size | 23/64" |
| Cutting Diameter (DC) (Decimal Inch) | 0.3594 |
| Cutting Diameter (DC) (Fractional Inch) | 23/64 |
| Cutting Diameter (DC) (mm) | 9.13 |
| Shank Diameter (DCON) (Decimal Inch) | 0.3594 |
| Shank Diameter (DCON) (mm) | 9.13 |
| Usable Length (LU) (Fractional Inch) | 1-13/32 |
| Flute Length (LCF) (Decimal Inch) | 1.7500 |
| Flute Length (LCF) (Fractional Inch) | 1-3/4 |
| Flute Length (LCF) (mm) | 44.45 |
| Overall Length (OAL) (Decimal Inch) | 3.0625 |
| Overall Length (OAL) (Fractional Inch) | 3-1/16 |
| Overall Length (OAL) (mm) | 77.79 |
| Shank Length (LS) (Decimal Inch) | 1.4900 |
| Point Angle (Degree) | 140 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +.00000 / -.00050 |
| Cutting Diameter (DC) Tolerance (mm) | +.0000 / -.0127 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 0 |
| Center Cutting | No |
| Number of Margins | 2 |
| Shipping Weight | 0.1440 |
| Series | 106 |
| US Stock | 13 |
| Shank Length (LS) (mm) | 37.85 |
| Shank Diameter (DCON) (Fractional Inch) | 23/64 |
| Usable Length (LU) (Decimal Inch) | 1.4062 |
| Usable Length (LU) (mm) | 35.72 |
| Coating Description | AlTiN (Ti-NAMITE-A) |
| Double Margins (Yes/No) | No |
| Flute Type | Straight |
