25.00mm Dia, 7 Flute, Corner Radius End Mill - 74889
SERIES: 77MCR
H-Carb

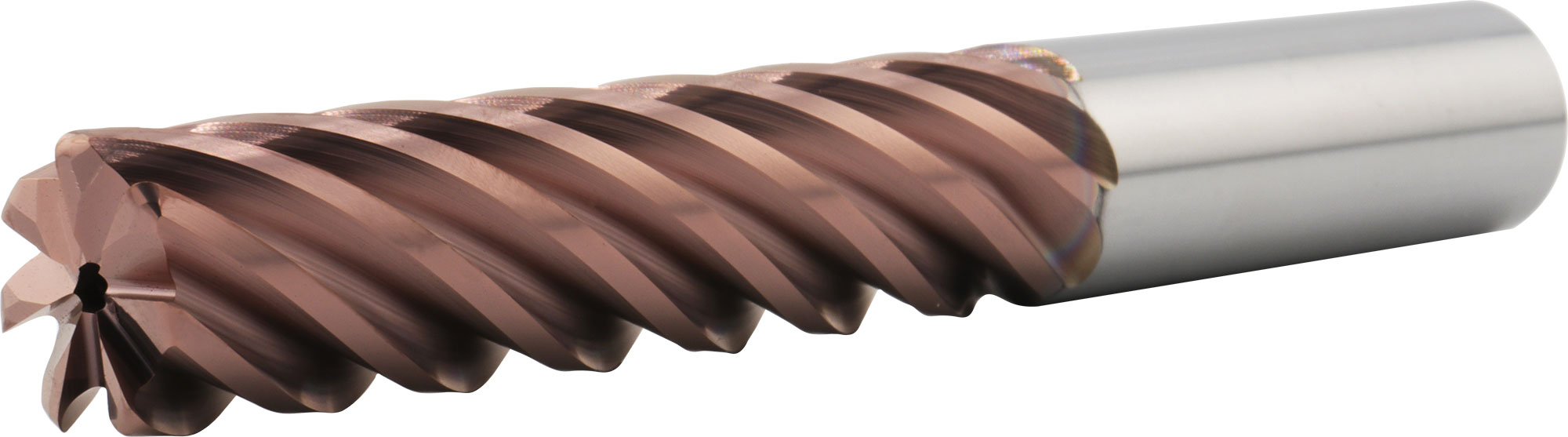

25.00mm Dia, 75.00mm LOC, 25.00mm Shank Dia, 2.00mm Radius, 7 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series 77MCR, H-Carb, Corner Radius End Mill - 74889
Feature & Benefits

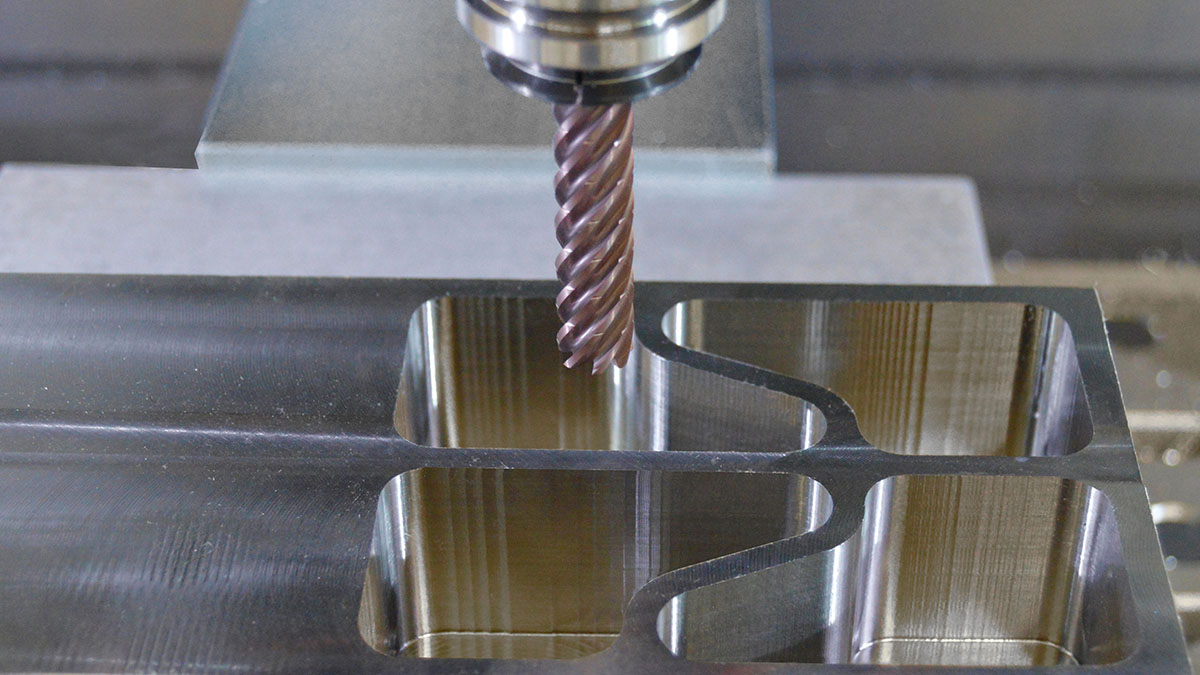

Specializes in deep axial trochoidal and high-speed milling applications
Optimized core improves rigidity, chip flow and reduces deflection
| Series | 77MCR |
|---|---|
| Series Description | H-Carb |
| High Performance | Yes |
| End Configuration | Corner Radius |
| Tool Length | Long |
| Unit (inch/mm) | mm |
| Number of Flutes | 7 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

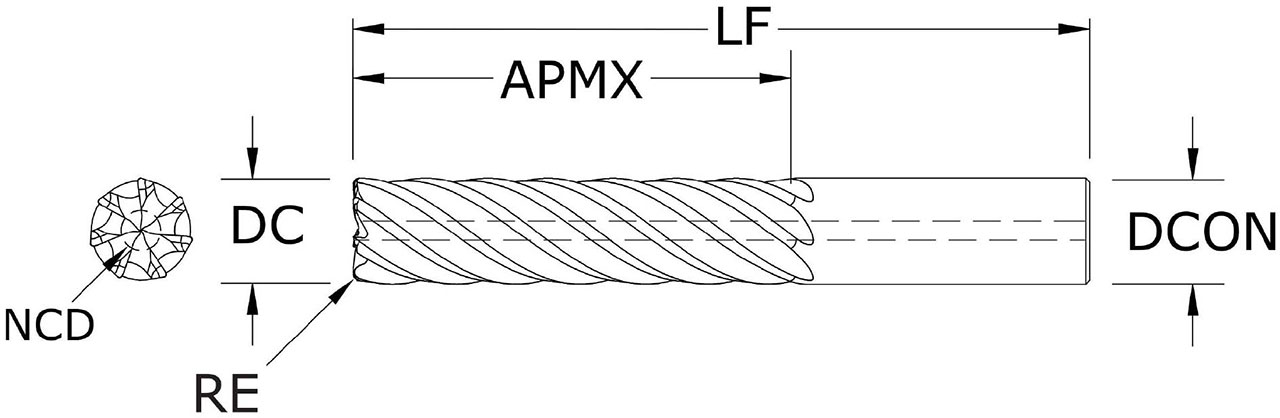

| Cutting Diameter (DC) (Decimal Inch) | 0.9843 |
| Cutting Diameter (DC) (mm) | 25.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.9843 |
| Shank Diameter (DCON) (mm) | 25.00 |
| Length of Cut (APMX) (Decimal Inch) | 2.9528 |
| Length of Cut (APMX) (mm) | 75.00 |
| Overall Length (LF) (Decimal Inch) | 5.9055 |
| Overall Length (LF) (mm) | 150.00 |
| Corner Radius (RE) (Decimal Inch) | 0.0787 |
| Corner Radius (RE) (mm) | 2.00 |
| Non-Cutting Center Diameter (NCD) (Decimal Inch) | 0.3327 |
| Non-Cutting Center Diameter (NCD) (mm) | 8.45 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Corner Radius (RE) Tolerance (mm) | +0.000/-0.050 |
| Shank Type | Straight |
| Weldon Flat | No |
| Coolant Option | Internal Coolant |
| Coating Description | TM (Ti-NAMITE-M) |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 37 |
| Variable Helix | Yes |
| Center Cutting | No |
| Chip Breaker | No |
| Shipping Weight | 1.9050 |
| US Stock | 0 |
| Shank Diameter (DCON) Tolerance (Decimal Inch) | +0.00000/-0.00051 |
| Shank Diameter (DCON) Tolerance (mm) | +0.000/-0.013 |
