3.10mm Dia, 140 Degree Point, Solid Carbide Drill - 06052
SERIES: M814
Micro Drill
3.10mm Dia, 140 Degree Point, 4.00mm Shank Dia, 106.00mm OAL, 2 Flute, 15xD, Coolant-Through, Ti-NAMITE-Cr (AlCrN) Coated, Series M814, Micro, Solid Carbide Drill - 06052
Feature & Benefits
Split point and double margin design provide superior hole finish and size control
Coolant hole feature allows straight through drilling without a peck cycle
Proprietary high performance coating and mirror polished fluting increase tool life and productivity in moderate to difficult workpiece materials
Application specific sub-micron grain carbide designed specifically for micro tool applications
Manufactured in accordance with KSPT ISO certified quality procedures
| Series Description | Micro Drill |
|---|---|
| High Performance | No |
| Unit (inch/mm) | mm |
| Number of Flutes | 2 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Reach (xD) | 15xD |
| Size | 3.10mm |

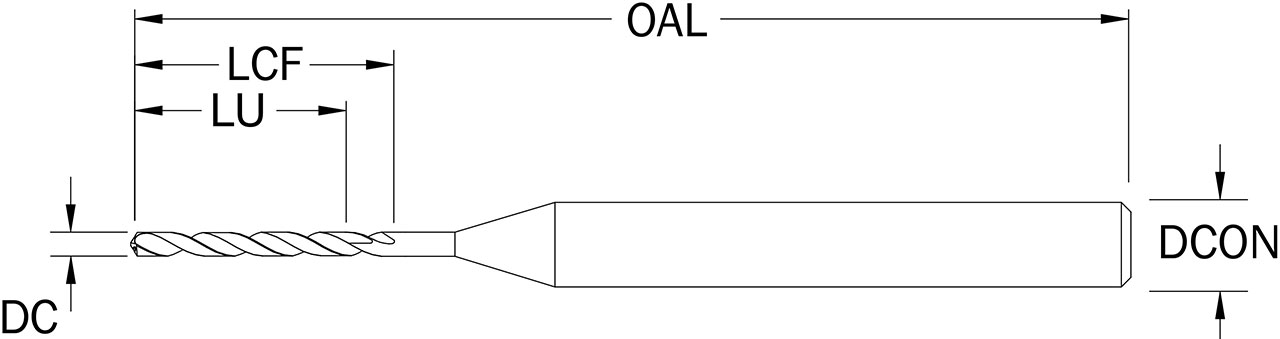

| Cutting Diameter (DC) (Decimal Inch) | 0.1220 |
| Cutting Diameter (DC) (mm) | 3.10 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1575 |
| Shank Diameter (DCON) (mm) | 4.00 |
| Flute Length (LCF) (Decimal Inch) | 2.1850 |
| Flute Length (LCF) (mm) | 55.50 |
| Overall Length (OAL) (Decimal Inch) | 4.1732 |
| Overall Length (OAL) (mm) | 106.00 |
| Point Angle (Degree) | 140 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +.00100 / +.00900 |
| Cutting Diameter (DC) Tolerance (mm) | +.0254 / +.2286 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | Internal Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 28 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| Number of Margins | 1 |
| KPT Micro Crossover (Old Material Number) | 8525540 |
| KPT Micro Crossover (Part Number) | 814-1220L2185 |
| KPT Micro Crossover Type | Direct Match |
| Shipping Weight | 0.0245 |
| Series | M814 |
| Weldon Flat | No |
| US Stock | 17 |
| Profile Angle (Degree) | 15 |
| Usable Length (LU) (Decimal Inch) | 1.8307 |
| Usable Length (LU) (mm) | 46.50 |
| Coating Description | AlCrN (Ti-NAMITE-Cr) |
