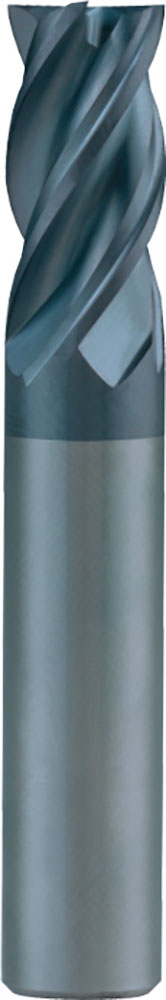

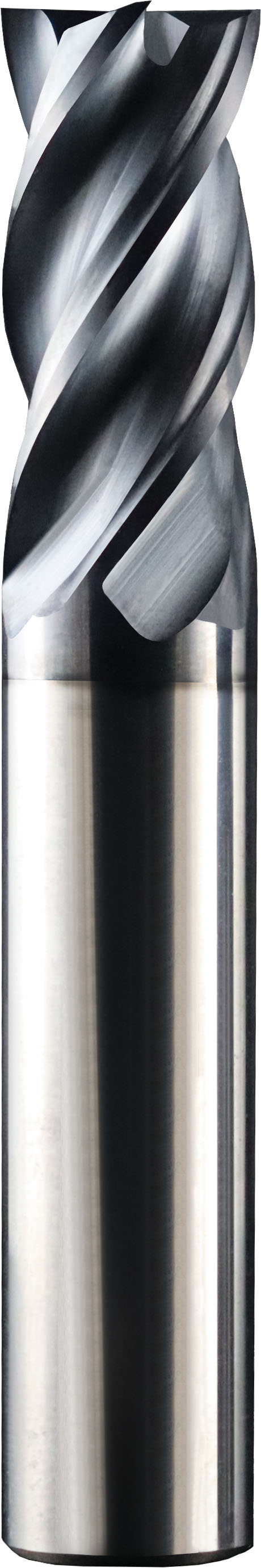

3/16" Dia, 4 Flute, Square End End Mill - 36408

SERIES: Z1S

Z-Carb

3/16" Dia, 0.4370" LOC, 3/16" Shank Dia, 4 Flute, 35-38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series Z1S, Z-Carb, Square End End Mill - 36408

Feature & Benefits

Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level

Unequal helix design changes the cutting angle to improve harmonics

Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics

Enhanced corner geometry with tight tolerance corner radii

Recommended for materials ≤ 45 HRc (≤ 420 Bhn)

Total Available U.S. :773

Series Description	Z-Carb
High Performance	Yes
End Configuration	Square End
Unit (inch/mm)	inch
Number of Flutes	4
Primary Workpiece Material	(P) Steel\|(M) Stainless Steel\|(K) Cast Iron\|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials
Cutting Diameter (DC) (Decimal Inch)	0.1875
Cutting Diameter (DC) (Fractional Inch)	3/16
Cutting Diameter (DC) (mm)	4.76
Shank Diameter (DCON) (Decimal Inch)	0.1875
Shank Diameter (DCON) (mm)	4.76
Length of Cut (APMX) (Decimal Inch)	0.4370
Length of Cut (APMX) (mm)	11.10
Overall Length (LF) (Decimal Inch)	2.0000
Overall Length (LF) (Fractional Inch)	2
Overall Length (LF) (mm)	50.80
Shank Length (LS) (Decimal Inch)	1.5630
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0012
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.030
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Flute Spacing Unequal / Right Hand Cut Direction (RHC)
Rake Angle	Variable
Helix Angle	Variable Right Spiral
Helix Angle (Degree)	35-38
Variable Helix	Yes
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	0.0210
Series	Z1S
Weldon Flat	No
US Stock	773
Shank Length (LS) (mm)	39.70
Shank Diameter (DCON) (Fractional Inch)	3/16
Tool Length	Regular
Coating Description	TX (Ti-NAMITE-X)
