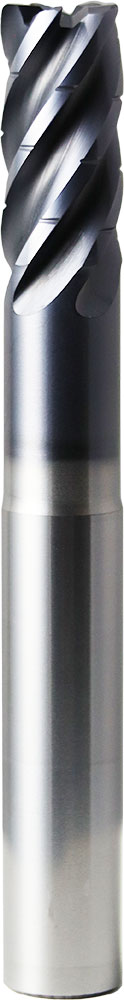

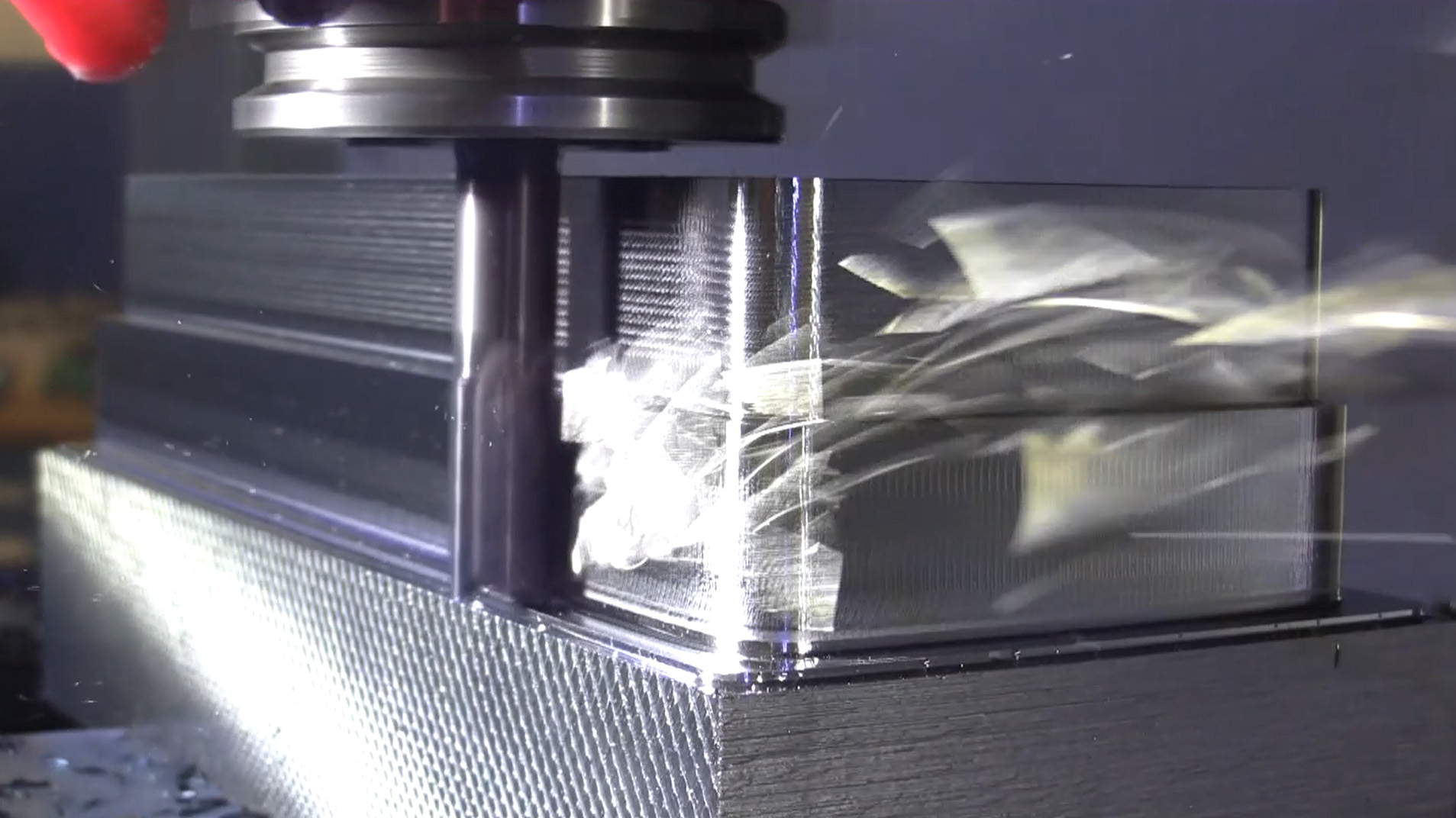

3/16" Dia, 5 Flute, Chip Breaker Corner Radius End Mill - 37775
SERIES: Z5C
Z-Carb-HPR
3/16" Dia, 3/8" LOC, 3/4" Reach, 3/16" Shank Dia, 0.0150" Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5C, Z-Carb-HPR, Chip Breaker Corner Radius End Mill - 37775
Feature & Benefits
Positive Radial Rake
Variable Flute Pattern
Open Center Design
Long Reach

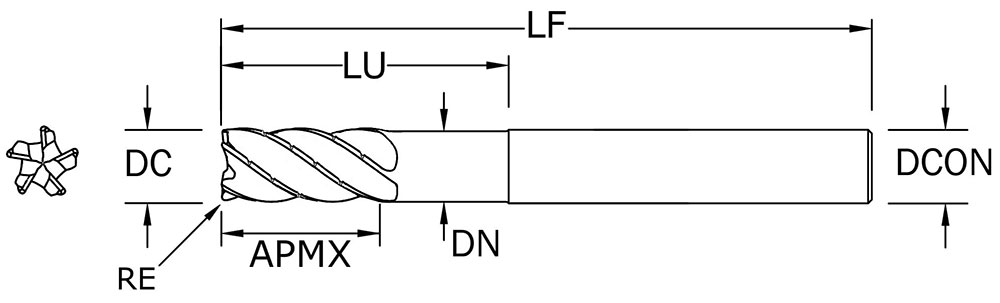

Series Description | Z-Carb-HPR |
---|---|
High Performance | Yes |
End Configuration | Chip Breaker (CR) |
Tool Length | Long Reach Neck |
Unit (inch/mm) | inch |
Number of Flutes | 5 |
Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
Secondary Workpiece Material | (H) Hardened Materials |
Cutting Diameter (DC) (Decimal Inch) | 0.1875 |
Cutting Diameter (DC) (Fractional Inch) | 3/16 |
Cutting Diameter (DC) (mm) | 4.76 |
Shank Diameter (DCON) (Decimal Inch) | 0.1875 |
Shank Diameter (DCON) (mm) | 4.76 |
Length of Cut (APMX) (Decimal Inch) | 0.3750 |
Length of Cut (APMX) (Fractional Inch) | 3/8 |
Length of Cut (APMX) (mm) | 9.53 |
Reach (LU) (Decimal Inch) | 0.7500 |
Reach (LU) (Fractional Inch) | 3/4 |
Reach (LU) (mm) | 19.05 |
Overall Length (LF) (Decimal Inch) | 2.5000 |
Overall Length (LF) (Fractional Inch) | 2-1/2 |
Overall Length (LF) (mm) | 63.50 |
Neck Diameter (DN) (Decimal Inch) | 0.1780 |
Neck Diameter (DN) (mm) | 4.52 |
Corner Radius (RE) (Decimal Inch) | 0.0150 |
Corner Radius (RE) (mm) | 0.38 |
Non-Cutting Center Diameter (NCD) (Decimal Inch) | 0.0660 |
Non-Cutting Center Diameter (NCD) (mm) | 1.68 |
Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0012 |
Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.030 |
Shank Diameter (DCON) Tolerance (ISO) | h6 |
Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
Corner Radius (RE) Tolerance (mm) | +0.000/-0.050 |
Shank Type | Straight |
Coolant Option | External Coolant |
Additional Geometry | Right Hand Cut Direction (RHC) |
Rake Angle | Positive |
Helix Angle | Right Spiral |
Helix Angle (Degree) | 37 |
Variable Helix | No |
Center Cutting | No |
Chip Breaker | Yes |
Shipping Weight | 0.0330 |
Series | Z5C |
Weldon Flat | No |
US Stock | 0 |
Shank Diameter (DCON) (Fractional Inch) | 3/16 |
Coating Description | AlTiN (Ti-NAMITE-A) |
