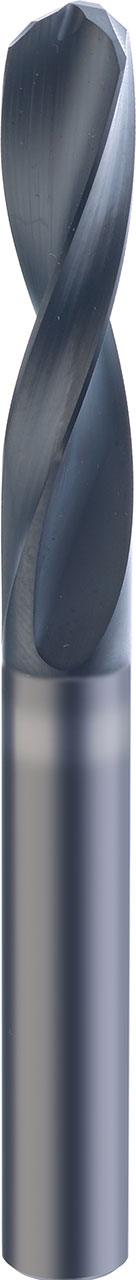

3.20mm Dia, 145 Degree Point, Solid Carbide Drill - 50004
SERIES: 120M
Series 120 - CFRP 8 Facet
3.20mm Dia, 145 Degree Point, 6.00mm Shank Dia, 66.00mm OAL, 2 Flute, 3xD, Di-NAMITE (Diamond) Coated, Series 120M, Series 120 - CFRP 8 Facet, Solid Carbide Drill - 50004
Feature & Benefits
Double margin design stabilizes the drill for greater hole accuracy and improved surface finish
Notched point reduces thrust force over conventional designs
8 facet point reduces fiber breakout and delamination on exit
90 degree secondary chamfer angle improves hole entrance and exit quality
| Series Description | Series 120 - CFRP 8 Facet |
|---|---|
| High Performance | Yes |
| Unit (inch/mm) | mm |
| Number of Flutes | 2 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |
| Reach (xD) | 3xD |
| Size | 3.20mm |

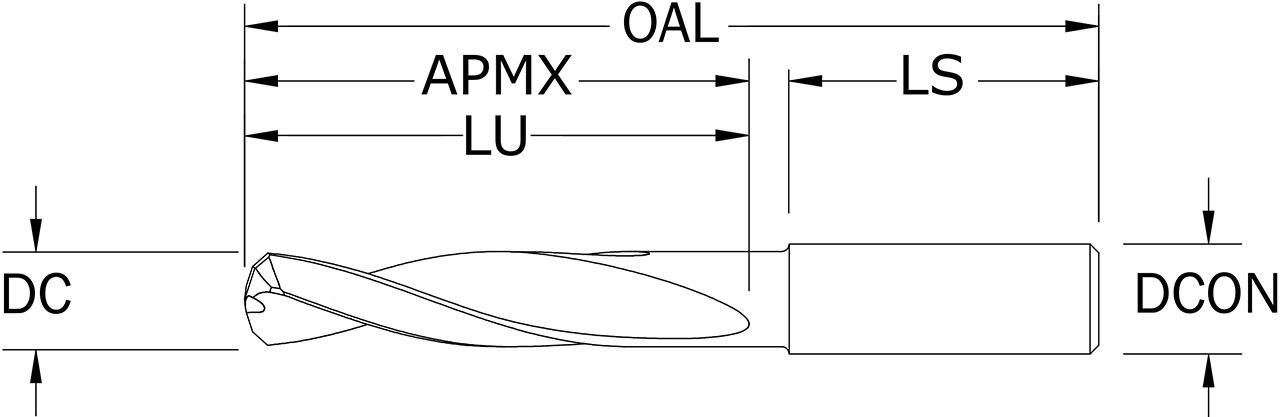

| Cutting Diameter (DC) (Decimal Inch) | 0.1260 |
| Cutting Diameter (DC) (mm) | 3.20 |
| Shank Diameter (DCON) (Decimal Inch) | 0.2362 |
| Shank Diameter (DCON) (mm) | 6.00 |
| Flute Length (LCF) (Decimal Inch) | 0.7874 |
| Flute Length (LCF) (mm) | 20.00 |
| Overall Length (OAL) (Decimal Inch) | 2.5984 |
| Overall Length (OAL) (mm) | 66.00 |
| Shank Length (LS) (Decimal Inch) | 1.4170 |
| Point Angle (Degree) | 145 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +.00000 / -.00050 |
| Cutting Diameter (DC) Tolerance (mm) | +.0000 / -.0127 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Coating Description | Diamond (Di-NAMITE) |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 20 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| DIN Standard | DIN 6537 |
| Primary Chamfer Angle (a) (Degree) | 145 |
| Secondary Chamfer Angle (a) (Degree) | 90 |
| Number of Margins | 4 |
| Shipping Weight | 0.0450 |
| Series | 120M |
| Weldon Flat | No |
| US Stock | 16 |
| Shank Length (LS) (mm) | 35.99 |
| Usable Length (LU) (Decimal Inch) | 0.7870 |
| Usable Length (LU) (mm) | 19.99 |
