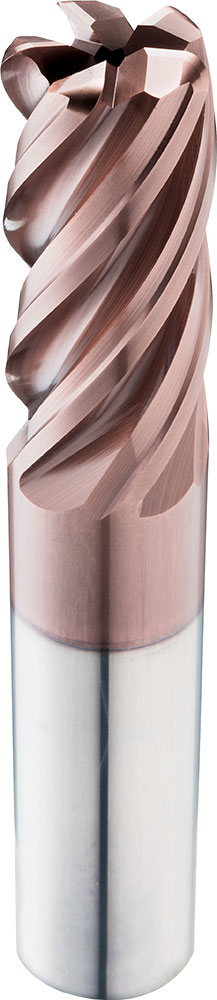

3/4" Dia, 5 Flute, Corner Radius End Mill - 37655
SERIES: Z5C
Z-Carb-HPR
3/4" Dia, 2-1/4" LOC, 3/4" Shank Dia, 0.0600" Radius, 5 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 37655
Feature & Benefits
An ideal balance of helix, indexing, flute depth, rake and relief
Variable indexing for chatter supression and patented edge geometry for shearing and strength
Chatter-free geometry allows deep cutting and high speed machining
Central coolant hole delivers coolant effectively to the cutting zone enhancing chip removal when pocketing or slotting
Enhanced corner geometry with tight tolerance corner radii

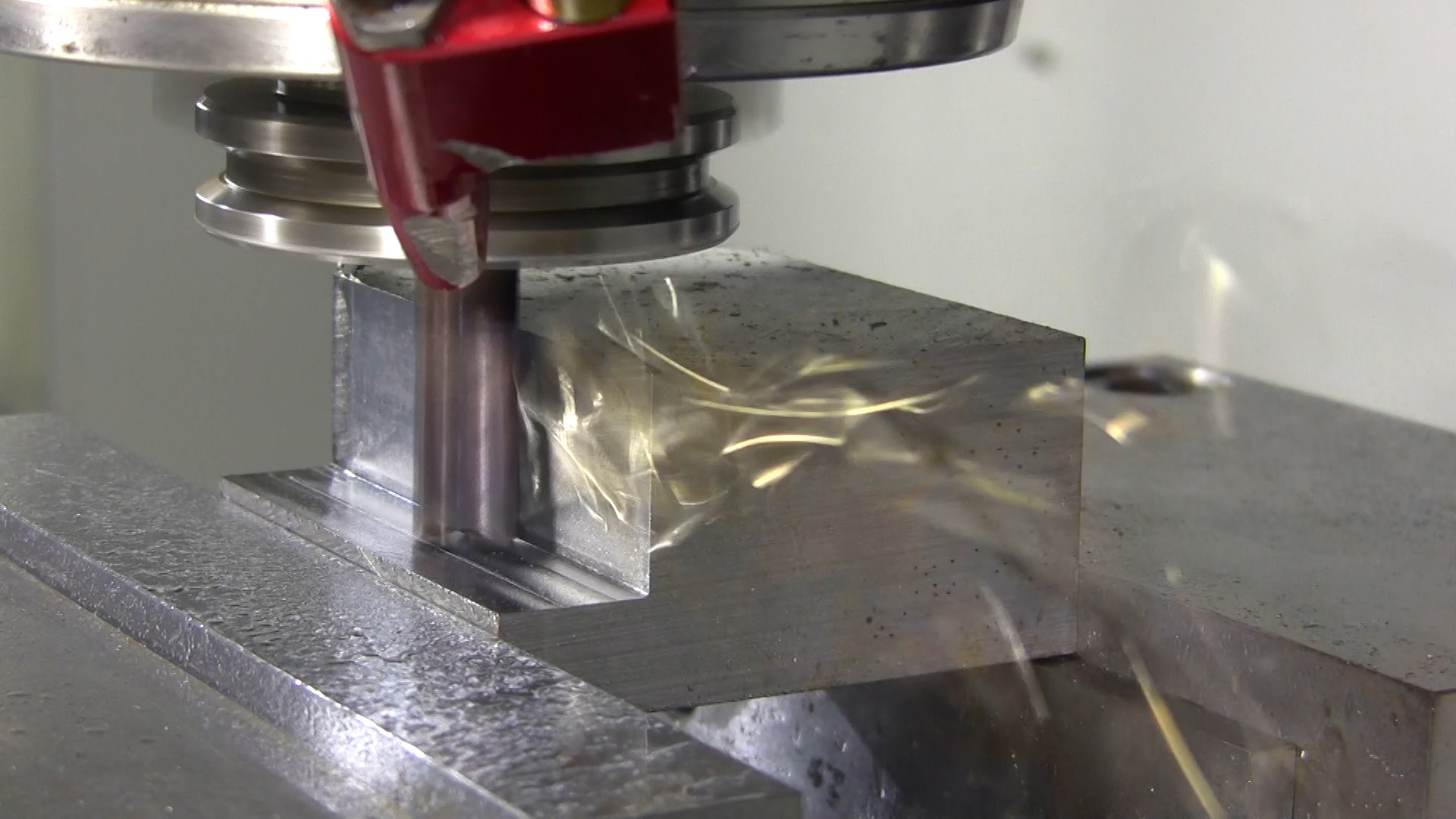

Excels at roughing, ramping, high speed machining and finishing in a variety of materials
| Series Description | Z-Carb-HPR |
|---|---|
| High Performance | Yes |
| End Configuration | Corner Radius |
| Tool Length | Extra Long |
| Unit (inch/mm) | inch |
| Number of Flutes | 5 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

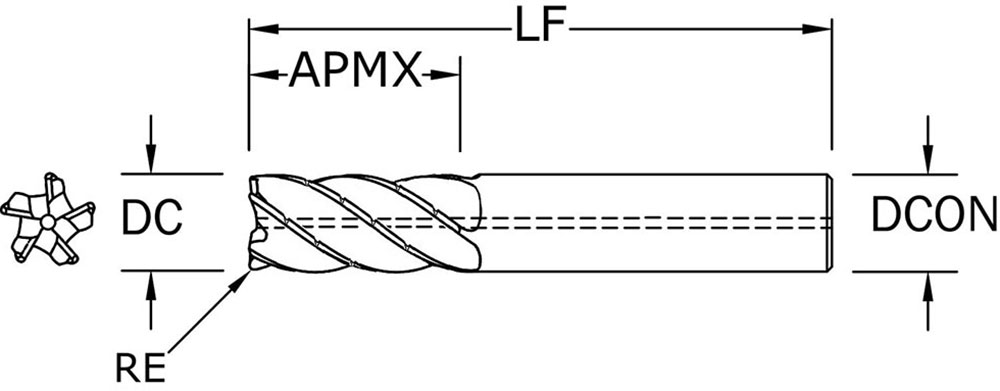

| Cutting Diameter (DC) (Decimal Inch) | 0.7500 |
| Cutting Diameter (DC) (Fractional Inch) | 3/4 |
| Cutting Diameter (DC) (mm) | 19.05 |
| Shank Diameter (DCON) (Decimal Inch) | 0.7500 |
| Shank Diameter (DCON) (mm) | 19.05 |
| Length of Cut (APMX) (Decimal Inch) | 2.2500 |
| Length of Cut (APMX) (Fractional Inch) | 2-1/4 |
| Length of Cut (APMX) (mm) | 57.15 |
| Overall Length (LF) (Decimal Inch) | 5.0000 |
| Overall Length (LF) (Fractional Inch) | 5 |
| Overall Length (LF) (mm) | 127.00 |
| Corner Radius (RE) (Decimal Inch) | 0.0600 |
| Corner Radius (RE) (mm) | 1.52 |
| Non-Cutting Center Diameter (NCD) (Decimal Inch) | 0.2630 |
| Non-Cutting Center Diameter (NCD) (mm) | 6.68 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Corner Radius (RE) Tolerance (mm) | +0.000/-0.050 |
| Shank Type | Straight |
| Coolant Option | Internal Coolant |
| Additional Geometry | Chip Breaker / Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 37 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| Shipping Weight | 0.9000 |
| Series | Z5C |
| Weldon Flat | No |
| US Stock | 0 |
| Shank Diameter (DCON) (Fractional Inch) | 3/4 |
| Coating Description | TM (Ti-NAMITE-M) |
Alternate Products

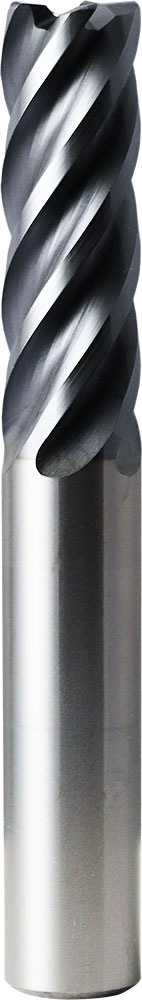

3/4" Dia, 2-1/4" LOC, 3/4" Shank Dia, 0.0600" Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 37650
U.S. stocked items ship next day
Total Available U.S. :0
3/4" Dia, 2-1/4" LOC, 3/4" Shank Dia, 0.0600" Radius, 5 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 37651
U.S. stocked items ship next day
Total Available U.S. :0
3/4" Dia, 2-1/4" LOC, 3/4" Shank Dia, 0.0600" Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5C, Z-Carb-HPR, Chip Breaker Corner Radius End Mill - 37652
U.S. stocked items ship next day
Total Available U.S. :0

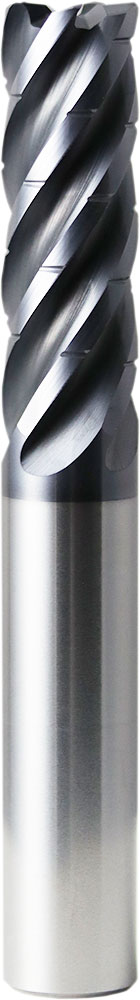

3/4" Dia, 2-1/4" LOC, 3/4" Shank Dia, 0.0600" Radius, 5 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5C, Z-Carb-HPR, Chip Breaker Corner Radius End Mill - 37653
U.S. stocked items ship next day
Total Available U.S. :0
3/4" Dia, 2-1/4" LOC, 3/4" Shank Dia, 0.0600" Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 37654
U.S. stocked items ship next day
Total Available U.S. :0
3/4" Dia, 2-1/4" LOC, 3/4" Shank Dia, 0.0600" Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5C, Z-Carb-HPR, Chip Breaker Corner Radius End Mill - 37656
U.S. stocked items ship next day
Total Available U.S. :1

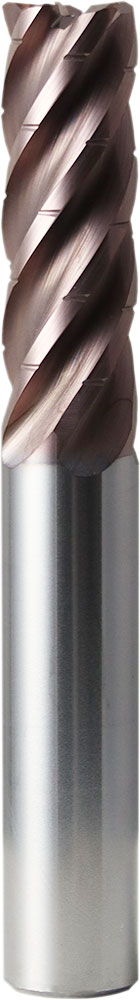

3/4" Dia, 2-1/4" LOC, 3/4" Shank Dia, 0.0600" Radius, 5 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5C, Z-Carb-HPR, Chip Breaker Corner Radius End Mill - 37657
