3/8" Dia, 6 Flute, Router - 72974

SERIES: 25

Series 25 - CFRP Compression Router

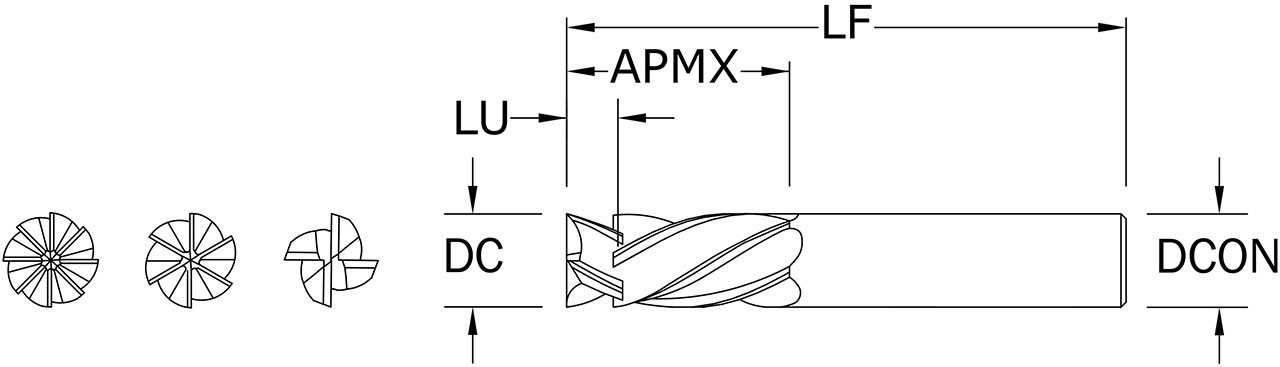

3/8" Dia, 1-1/8" LOC, 2-1/2" OAL, 3/8" Shank Dia, 6 Flute, 30 Degree Helix, Uncoated, Series 25, Series 25 - CFRP Compression Router - 72974

Feature & Benefits

Left Hand Helix

Right Hand Helix

Total Available U.S. :12

Find Distributor

Series Description	Series 25 - CFRP Compression Router
High Performance	Yes
End Configuration	Square End
Tool Length	Long
Unit (inch/mm)	inch
Number of Flutes	6
Primary Workpiece Material	(N) Non-Ferrous Materials
Cutting Diameter (DC) (Decimal Inch)	0.3750
Cutting Diameter (DC) (Fractional Inch)	3/8
Cutting Diameter (DC) (mm)	9.53
Shank Diameter (DCON) (Decimal Inch)	0.3750
Shank Diameter (DCON) (mm)	9.53
Length of Cut (APMX) (Decimal Inch)	1.1250
Length of Cut (APMX) (Fractional Inch)	1-1/8
Length of Cut (APMX) (mm)	28.58
Overall Length (LF) (Decimal Inch)	2.5000
Overall Length (LF) (Fractional Inch)	2-1/2
Overall Length (LF) (mm)	63.50
Shank Length (LS) (Decimal Inch)	1.3750
Shank Length (LS) (Fractional Inch)	1-3/8
Split Length (SPTL) (Fractional Inch)	17/64
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0030
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.080
Shank Diameter (DCON) Tolerance (ISO)	h6
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Rake Angle	Positive
Helix Angle	Right Spiral
Helix Angle (Degree)	30
Variable Helix	No
Center Cutting	Yes
Chip Breaker	No
Shipping Weight	0.1370
Series	25
Weldon Flat	No
US Stock	12
Shank Length (LS) (mm)	34.93
Shank Diameter (DCON) (Fractional Inch)	3/8
Coating Description	Bright/Uncoated
