8.00mm Dia, 5 Flute, Chip Breaker Corner Radius End Mill - 47659
SERIES: Z5C
Z-Carb-HPR
8.00mm Dia, 18.00mm LOC, 32.00mm Reach, 8.00mm Shank Dia, 1.00mm Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5C, Z-Carb-HPR, Chip Breaker Corner Radius End Mill - 47659
Feature & Benefits
Positive Radial Rake
Variable Flute Pattern
Open Center Design
Long Reach
| Series Description | Z-Carb-HPR |
|---|---|
| High Performance | Yes |
| End Configuration | Chip Breaker (CR) |
| Tool Length | Long Reach Neck |
| Unit (inch/mm) | mm |
| Number of Flutes | 5 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

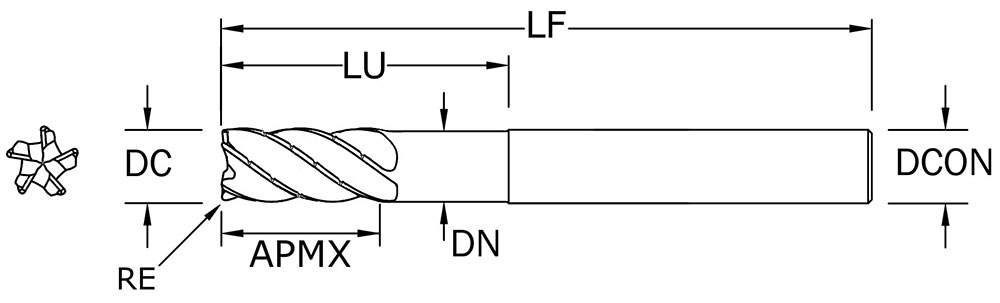

| Cutting Diameter (DC) (Decimal Inch) | 0.3150 |
| Cutting Diameter (DC) (mm) | 8.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.3150 |
| Shank Diameter (DCON) (mm) | 8.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.7087 |
| Length of Cut (APMX) (mm) | 18.00 |
| Reach (LU) (Decimal Inch) | 1.2598 |
| Reach (LU) (mm) | 32.00 |
| Overall Length (LF) (Decimal Inch) | 2.9528 |
| Overall Length (LF) (mm) | 75.00 |
| Neck Diameter (DN) (Decimal Inch) | 0.2992 |
| Neck Diameter (DN) (mm) | 7.60 |
| Corner Radius (RE) (Decimal Inch) | 0.0394 |
| Corner Radius (RE) (mm) | 1.00 |
| Non-Cutting Center Diameter (NCD) (Decimal Inch) | 0.1100 |
| Non-Cutting Center Diameter (NCD) (mm) | 2.79 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0016 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.040 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Corner Radius (RE) Tolerance (mm) | +0.000/-0.050 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 37 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | Yes |
| Shipping Weight | 0.1100 |
| Series | Z5C |
| Weldon Flat | No |
| US Stock | 0 |
| Coating Description | TM (Ti-NAMITE-M) |
