1" Dia, 2 Flute, Square End End Mill - 30375
SERIES: 03S
General Application End Mill
1" Dia, 1-1/2" LOC, 1" Shank Dia, 2 Flute, 30 Degree Helix, Uncoated, Series 03S, Square End End Mill - 30375
| Series Description | General Application End Mill |
|---|---|
| High Performance | No |
| End Configuration | Square End |
| Unit (inch/mm) | inch |
| Number of Flutes | 2 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Cutting Diameter (DC) (Decimal Inch) | 1.0000 |
| Cutting Diameter (DC) (Fractional Inch) | 1 |
| Cutting Diameter (DC) (mm) | 25.40 |
| Shank Diameter (DCON) (Decimal Inch) | 1.0000 |
| Shank Diameter (DCON) (mm) | 25.40 |
| Length of Cut (APMX) (Decimal Inch) | 1.5000 |
| Length of Cut (APMX) (Fractional Inch) | 1-1/2 |
| Length of Cut (APMX) (mm) | 38.10 |
| Overall Length (LF) (Decimal Inch) | 4.0000 |
| Overall Length (LF) (Fractional Inch) | 4 |
| Overall Length (LF) (mm) | 101.60 |
| Shank Length (LS) (Decimal Inch) | 1.7000 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| Shipping Weight | 1.4120 |
| Series | 03S |
| Weldon Flat | No |
| US Stock | 5 |
| Shank Length (LS) (mm) | 43.18 |
| Shank Diameter (DCON) (Fractional Inch) | 1 |
| Tool Length | Stub |
| Coating Description | Bright/Uncoated |
Alternate Products

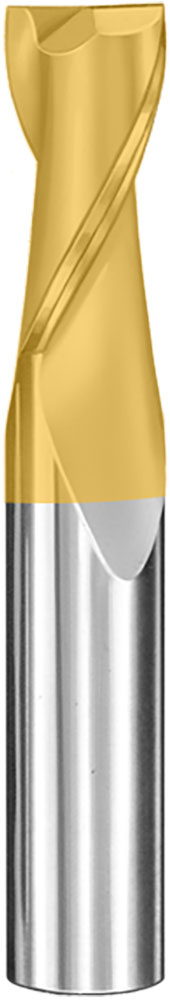

1" Dia, 1-1/2" LOC, 1" Shank Dia, 2 Flute, 30 Degree Helix, Ti-NAMITE (TiN) Coated, Series 03S, Square End End Mill - 39375
