#3 7/64" Dia, 118 Degree, 2 Flute, Countersink - 57009

SERIES: 301

General Application Drill and Countersink Combo

#3 7/64" Dia, 118 Degree, 2 Flute, 1/4" Body Dia, Uncoated, Series 301, General Application Drill and Countersink Combo - 57009

Total Available U.S. :299

Series Description	General Application Drill and Countersink Combo
High Performance	No
Unit (inch/mm)	inch
Number of Flutes	2
Primary Workpiece Material	(P) Steel\|(M) Stainless Steel\|(K) Cast Iron\|(N) Non-Ferrous Materials\|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials
Size	#3

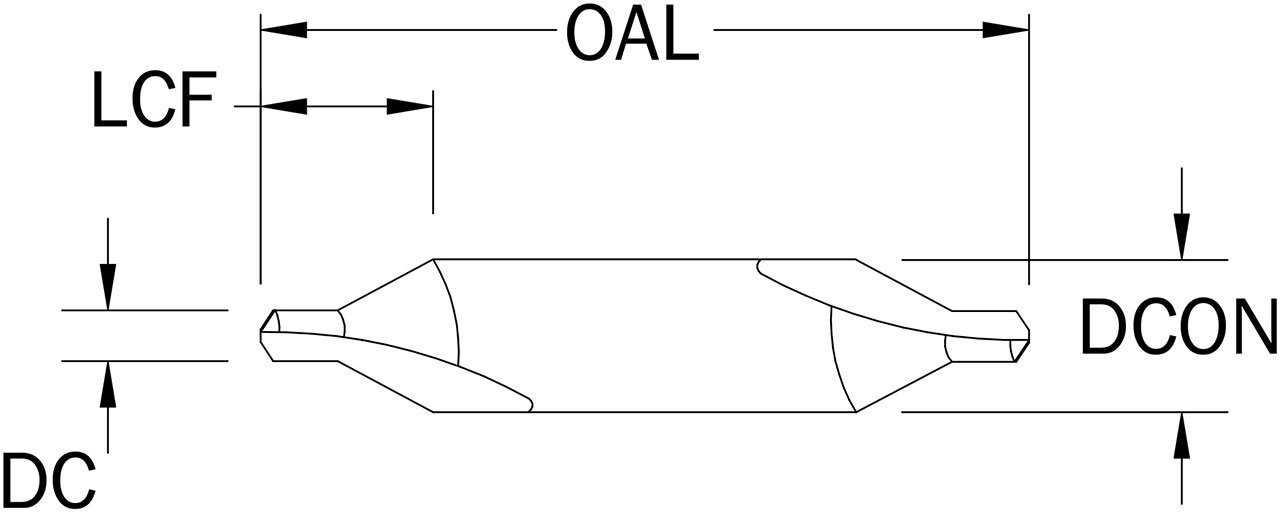

Cutting Diameter (DC) (Decimal Inch)	0.1094
Cutting Diameter (DC) (Fractional Inch)	7/64
Cutting Diameter (DC) (mm)	2.78
Cutting Diameter (DC) (Wire)	#3
Body Diameter (DCON) (Decimal Inch)	0.2500
Body Diameter (DCON) (Fractional Inch)	1/4
Body Diameter (DCON) (mm)	6.35
Flute Length (LCF) (Decimal Inch)	0.6250
Flute Length (LCF) (Fractional Inch)	5/8
Flute Length (LCF) (mm)	15.88
Overall Length (OAL) (Decimal Inch)	2.0000
Overall Length (OAL) (Fractional Inch)	2
Overall Length (OAL) (mm)	50.80
Shank Length (LS) (Decimal Inch)	0.7500
Shank Length (LS) (Fractional Inch)	3/4
Point Angle (Degree)	118
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Helix Angle	Right Spiral
Helix Angle (Degree)	0
Variable Helix	No
Center Cutting	No
Chip Breaker	No
Chamfer Angle (a) (Degree)	30
Primary Chamfer Angle (a) (Degree)	30
Number of Margins	2
Shipping Weight	0.0400
Series	301
Weldon Flat	No
US Stock	299
Shank Length (LS) (mm)	19.05
Coating Description	Bright/Uncoated

Alternate Products

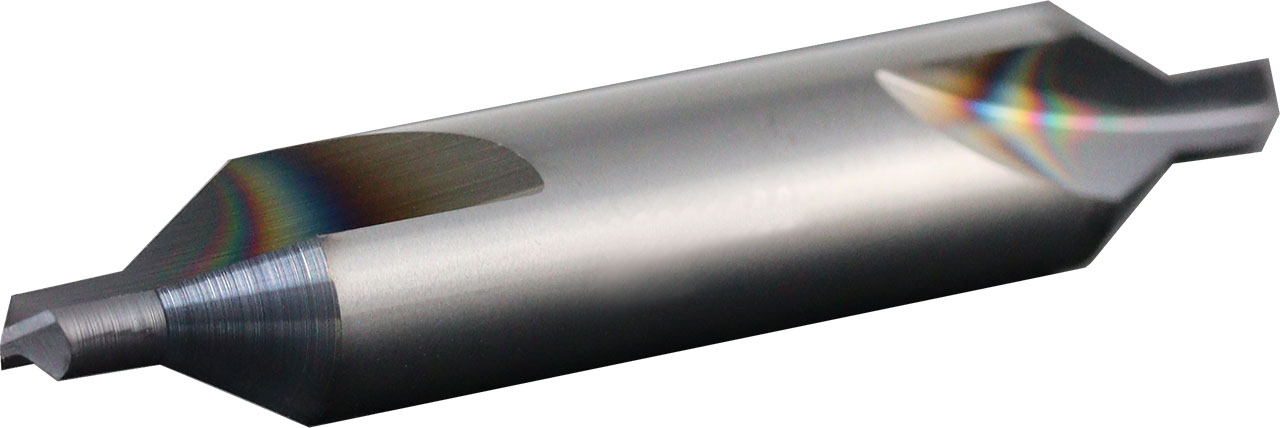

#3 7/64" Dia, 118 Degree, 2 Flute, 1/4" Body Dia, Ti-NAMITE-A (AlTiN) Coated, Series 301, General Application Drill and Countersink Combo - 57019
