#1 3/64" Dia, 118 Degree, 2 Flute, Countersink - 57017

SERIES: 301

General Application Drill and Countersink Combo

#1 3/64" Dia, 118 Degree, 2 Flute, 1/8" Body Dia, Ti-NAMITE-A (AlTiN) Coated, Series 301, General Application Drill and Countersink Combo - 57017

Total Available U.S. :10

Series Description	General Application Drill and Countersink Combo
High Performance	No
Unit (inch/mm)	inch
Number of Flutes	2
Primary Workpiece Material	(P) Steel\|(M) Stainless Steel\|(K) Cast Iron\|(N) Non-Ferrous Materials\|(S) High Temp Alloy
Secondary Workpiece Material	(H) Hardened Materials
Size	#1

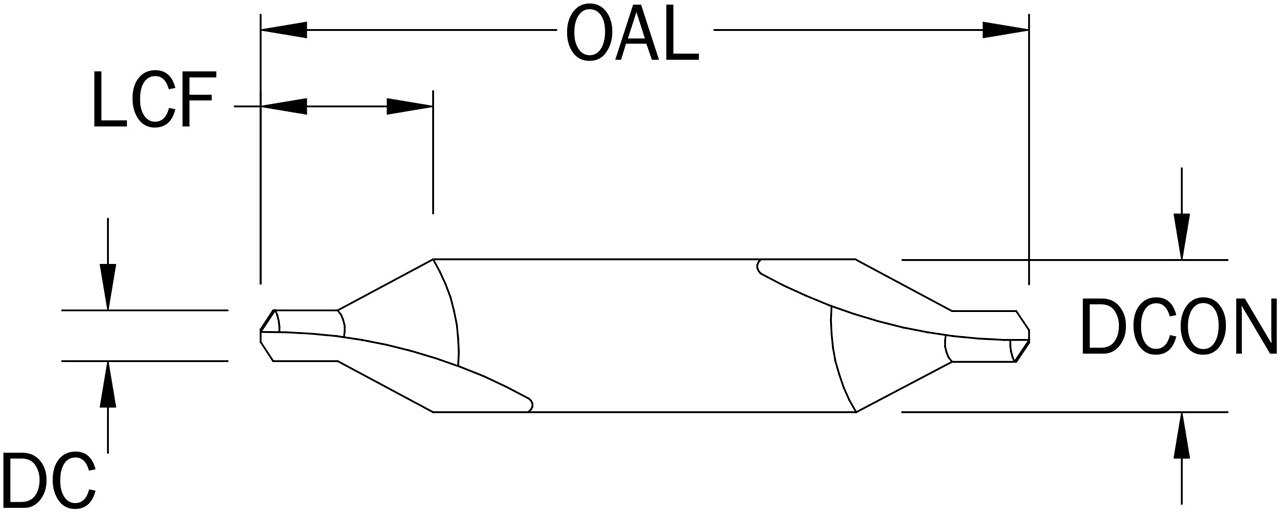

Cutting Diameter (DC) (Decimal Inch)	0.0469
Cutting Diameter (DC) (Fractional Inch)	3/64
Cutting Diameter (DC) (mm)	1.19
Cutting Diameter (DC) (Wire)	#1
Body Diameter (DCON) (Decimal Inch)	0.1250
Body Diameter (DCON) (Fractional Inch)	1/8
Body Diameter (DCON) (mm)	3.18
Flute Length (LCF) (Decimal Inch)	0.3750
Flute Length (LCF) (Fractional Inch)	3/8
Flute Length (LCF) (mm)	9.53
Overall Length (OAL) (Decimal Inch)	1.5000
Overall Length (OAL) (Fractional Inch)	1-1/2
Overall Length (OAL) (mm)	38.10
Shank Length (LS) (Decimal Inch)	0.7500
Shank Length (LS) (Fractional Inch)	3/4
Point Angle (Degree)	118
Shank Type	Straight
Coolant Option	External Coolant
Additional Geometry	Right Hand Cut Direction (RHC)
Helix Angle	Right Spiral
Helix Angle (Degree)	0
Variable Helix	No
Center Cutting	No
Chip Breaker	No
Chamfer Angle (a) (Degree)	30
Primary Chamfer Angle (a) (Degree)	30
Number of Margins	2
Shipping Weight	0.0120
Series	301
Weldon Flat	No
US Stock	10
Shank Length (LS) (mm)	19.05
Coating Description	AlTiN (Ti-NAMITE-A)

Alternate Products

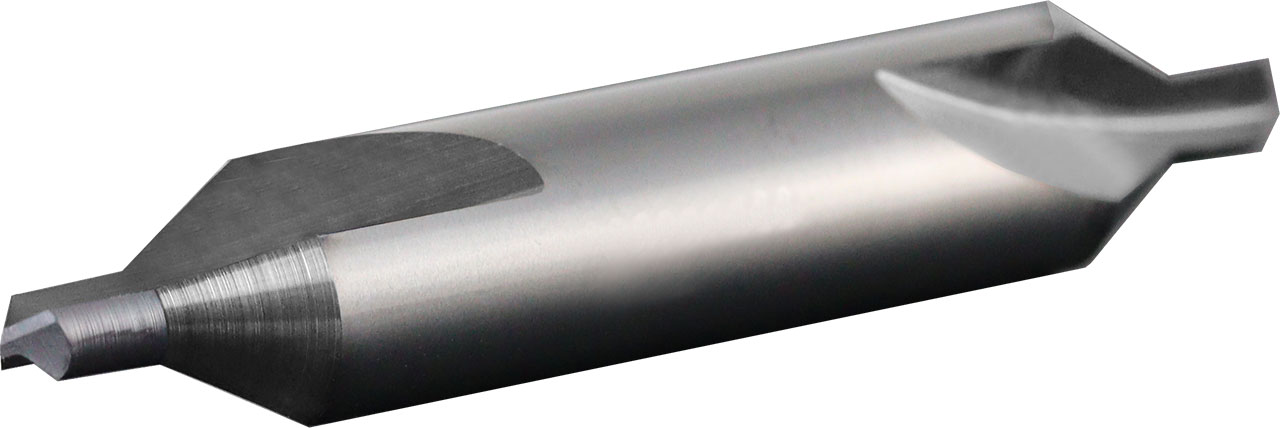

#1 3/64" Dia, 118 Degree, 2 Flute, 1/8" Body Dia, Uncoated, Series 301, General Application Drill and Countersink Combo - 57007

Total Available U.S. :568
