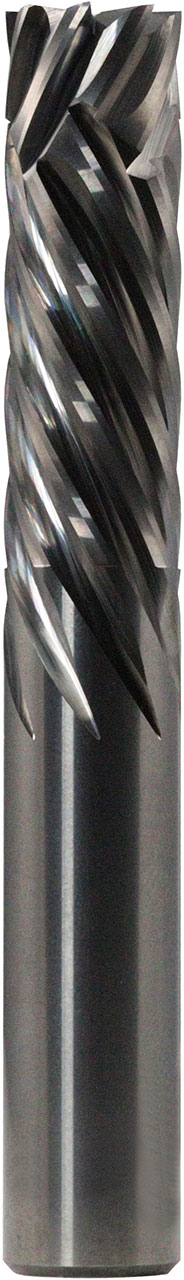

1/2" Dia, 8 Flute, Router - 72977
SERIES: 25
Series 25 - CFRP Compression Router
1/2" Dia, 1-1/2" LOC, 3-1/2" OAL, 1/2" Shank Dia, 8 Flute, 30 Degree Helix, Di-NAMITE (Diamond) Coated, Series 25, Series 25 - CFRP Compression Router - 72977
Feature & Benefits
Left Hand Helix
Right Hand Helix
| Series Description | Series 25 - CFRP Compression Router |
|---|---|
| High Performance | Yes |
| End Configuration | Square End |
| Tool Length | Long |
| Unit (inch/mm) | inch |
| Number of Flutes | 8 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |

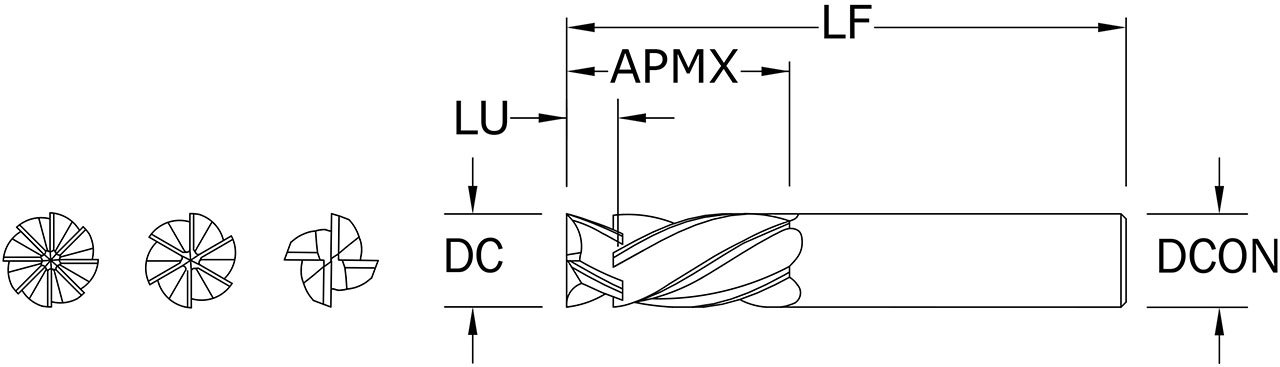

| Cutting Diameter (DC) (Decimal Inch) | 0.5000 |
| Cutting Diameter (DC) (Fractional Inch) | 1/2 |
| Cutting Diameter (DC) (mm) | 12.70 |
| Shank Diameter (DCON) (Decimal Inch) | 0.5000 |
| Shank Diameter (DCON) (mm) | 12.70 |
| Length of Cut (APMX) (Decimal Inch) | 1.5000 |
| Length of Cut (APMX) (Fractional Inch) | 1-1/2 |
| Length of Cut (APMX) (mm) | 38.10 |
| Overall Length (LF) (Decimal Inch) | 3.5000 |
| Overall Length (LF) (Fractional Inch) | 3-1/2 |
| Overall Length (LF) (mm) | 88.90 |
| Shank Length (LS) (Decimal Inch) | 2.0000 |
| Shank Length (LS) (Fractional Inch) | 2 |
| Split Length (SPTL) (Fractional Inch) | 23/64 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0030 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.080 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Rake Angle | Positive |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Center Cutting | Yes |
| Chip Breaker | No |
| KPT Micro Crossover (Old Material Number) | 8522442 |
| KPT Micro Crossover (Part Number) | 1890-5000V1500 |
| Shipping Weight | 0.3280 |
| Series | 25 |
| Weldon Flat | No |
| US Stock | 13 |
| Shank Length (LS) (mm) | 50.80 |
| Shank Diameter (DCON) (Fractional Inch) | 1/2 |
| Coating Description | Diamond (Di-NAMITE) |
Alternate Products
1/2" Dia, 1-1/2" LOC, 3-1/2" OAL, 1/2" Shank Dia, 8 Flute, 30 Degree Helix, Uncoated, Series 25, Series 25 - CFRP Compression Router - 72976
U.S. stocked items ship next day
Total Available U.S. :61
