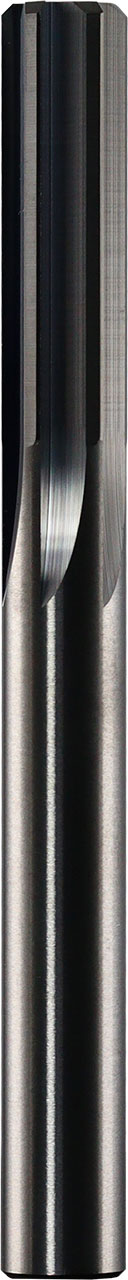

10.00mm Dia, 6 Flute, Straight Flute Reamer - 81029
SERIES: 201
Straight Flute Reamer
10.00mm Dia, 89.00mm OAL, 31.00mm Max Ream Length, 10.00mm Shank Dia, 6 Flute, Uncoated, Series 201, Straight Flute Reamer - 81029
| Series Description | Straight Flute Reamer |
|---|---|
| High Performance | No |
| Unit (inch/mm) | mm |
| Number of Flutes | 6 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |
| Size | 10.00mm |
| Cutting Diameter (DC) (Decimal Inch) | 0.3937 |
| Cutting Diameter (DC) (mm) | 10.00 |
| Shank Diameter (DCON) (Decimal Inch) | 0.3937 |
| Shank Diameter (DCON) (mm) | 10.00 |
| Overall Length (OAL) (Decimal Inch) | 3.5039 |
| Overall Length (OAL) (mm) | 89.00 |
| Maximum Ream Length (LCF) (Decimal Inch) | 1.2205 |
| Maximum Ream Length (LCF) (mm) | 31.00 |
| Shank Length (LS) (Decimal Inch) | 2.2800 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +.00043 / -.00000 |
| Cutting Diameter (DC) Tolerance (mm) | +.0110 / -.0000 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Diameter (DCON) Tolerance (Decimal Inch) | +0.0002 / -0.0000 |
| Shank Diameter (DCON) Tolerance (mm) | +0.005 / -0.000 |
| Shank Type | Straight |
| Coolant Option | External Coolant |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 0 |
| Variable Helix | No |
| Center Cutting | No |
| Chip Breaker | No |
| Chamfer Angle (a) (Degree) | 45 |
| Number of Margins | 1 |
| Shipping Weight | 0.2060 |
| Series | 201 |
| Weldon Flat | No |
| US Stock | 0 |
| Shank Length (LS) (mm) | 57.91 |
| Coating Description | Bright/Uncoated |
