PRECISE

COMPOSITE DRILLING

WITHOUT DELAMINATION

CFRP 8 FACET Series 120 Logo

CFRP 8 FACET | Series 120

n

The 8 Facet Double Angle Series 120 Drill implements a Double Angle Point minimizing workpiece delamination during drill entry and exit while efficiently redistributing loads across multiple cutting edges for heightened performance. Additionally, the Notched Point feature effectively reduces cutting forces at the drill center, further enhancing performance and extending the tool's operational life.

View Products
Where to Buy
Series 27 End Mill Group Picture

Features

CFRP 8 FACET Series 120 Drill Bit End Geometry Image

DOUBLE MARGIN CONSTRUCTION

  • Improves drill stability for better hole finish and size control
  • Allows coolant to reach the point for improved hole quality and extended tool life

DOUBLE ANGLE POINT

  • Minimizes workpiece delamination on drill entry and exit
  • Redistributes loads along multiple cutting edges for improved performance

NOTCHED POINT

  • Reduces cutting forces at the drill center for enhanced performance and tool life

Coating

Di-Namite Hard Coating Logo

Hardest coating available with the best abrasion resistance. It is carbon based so it is limited in application capabilities. This coating is suitable for machining highly abrasive, non-ferrous materials such as CFRP and graphite.

Series Details

Lineup Details

  • Cutting Diameter: #40 - 1/2" | 2,48 mm - 12,70 mm
  • Length of Cut: 2"- 4 1/4"
  • Overall Length: 2" - 4 1/4"
  • Flute Length: 9/16"- 2 5/16"
  • Shank Diameter: 1/8" - 1/2"
  • Coating: Di-NAMITE®

Primary Material Applications

  • Plastics / Composites

Industry Applications

General Engineering Icon

General Engineering

Casting and Foundries Icon

Casting & Foundries

Mold and Die Icon

Mold & Die

Automotive Icon

Automotive

Power Generation Icon

Power Generation

Medical Icon

Medical

Aerospace Icon

Aerospace

Firearms Icon

Firearms

Resources

Download

Drilling Solutions Brochure Cover Image

Drilling Solutions Brochure

Download

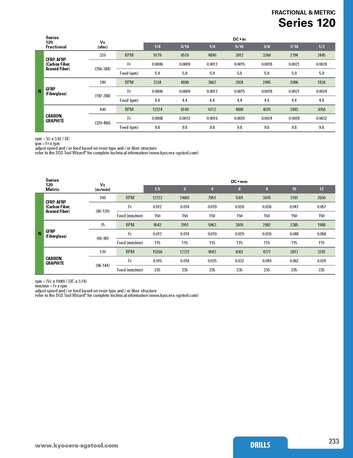

CFRP 8 FACET Series 120 Speed and Feed Cover Image

Series 120 Speeds & Feeds

Download

Composite Tools Brochure Cover Image

Composite Tools Brochure
