HIGH SPEED

CUTTING

PROCESS

T-Carb Logo

T-Carb® | Series 51

p
m
k
s

The T-Carb lineup features specialized engineering and design to excel at high-speed machining, specifically trochoidal and peel milling. The 6-flute design with eccentric relief provides strength and supreme chip control at high speeds, and with surprising finish results.

View Products
Where to Buy
T-Carb Tools Grouped

Features

Flute

End mill flute icon
  • Unequal flute indexing for vibration-free cutting at elevated rates.

End Geometry

Rounded corner geometry icon
  • Enhanced corner geometry with tight tolerance corner radii.
  • Square, corner radius & ball end configurations are available.
Fluting & Helix Angle
End mill flute icon
  • Eccentric relief provides superior strength and a smoother surface finish.
Coatings
Ti-Namite-x logo
  • The structural design of Ti-Namite-X is adapted to meet a diverse range of applications; everything from high- and low-alloy steels to hardened materials (up to 65 HRC core hardness). Ti-Namite-X is suitable for operations that require high cutting speeds, high temperatures at the cutting edge, and high metal removal rates.

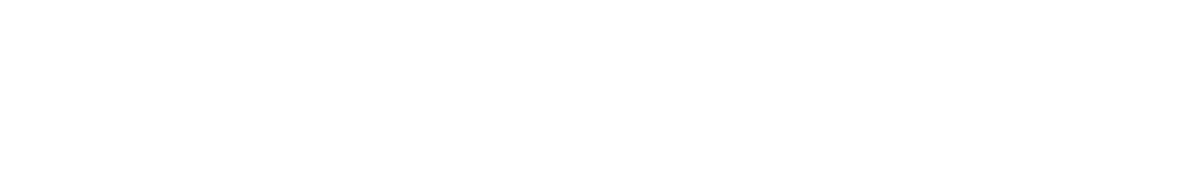

T-carb white line drawing

Series Details

Lineup Details

  • Cutting Diameter: 1/4"-1" | 6,0 mm - 20,0 mm
  • Length of Cut: 3/4"-2 5/8" | 8,0 mm - 38,0 mm
  • Overall Length: 2 1/2"-6" | 63,0 mm - 150,0 mm
  • Shank Diameter: 1/4"-1" | 6,0 mm - 20,0 mm
  • Corner Radius: .015-.250 | 0,5 mm - 5,0 mm
  • Reach: 1 1/8"-3 3/8" | 32,0 mm - 80,0 mm
  • Coating(s): Ti-NAMITE-X

Primary Material Applications

  • Steel ≤ 45 HRc
  • Stainless Steel ≤ 45HRc
  • Cast Iron ≤ 45HRc
  • High Temp Alloys
  • Titanium Alloys ≤ 45 HRc

Industry Applications

aerospace icon

Aerospace

Medical icon

Medical

Power generation icon

Power Generation

Automotive icon

Automotive

Mold and die icon

Mold & Die

Casting and foundries icon

Casting & Foundries

General engineering icon

General Engineering

firearms icon

Firearms

Secondary Material Applications

  • Cast Iron ≥ 45 HRc
  • Hardened Steel < 45 HRc

Resources

Download

T-Carb  Brochure cover

T-Carb Brochure

Download

Tooling matrix cover

Tooling Matrix

Download

T-carb metric speed and feed cover

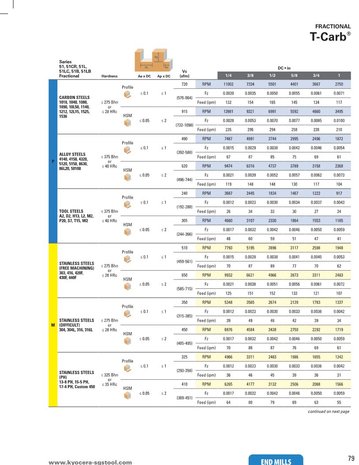

T-Carb | 51M

Speed / Feed

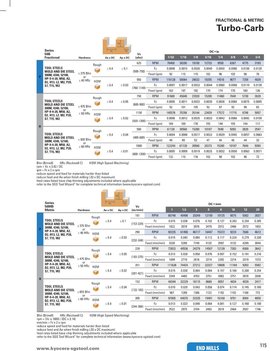

T-Carb | 51

Speed / Feed

Turbine blade manufactured on a 5th axis CNC machine and an end mill.
