HIGH-SPEED

CONTOUR

MILLING

Turbo-Carb logo

Turbo-Carb | Series 56

p
h

Designed for high-speed roughing and finishing of complex contoured shapes in hardened materials. The Turbo Carb end mill is made of an application-specific carbide to improve wear resistance and toughness in demanding applications. The high-performance S-Gash geometry on the ball improves shearing while reducing the load. With the exclusive Ti-NAMITE-X tool coating, these tools are ideal for dry machining.

View Products
Where to Buy

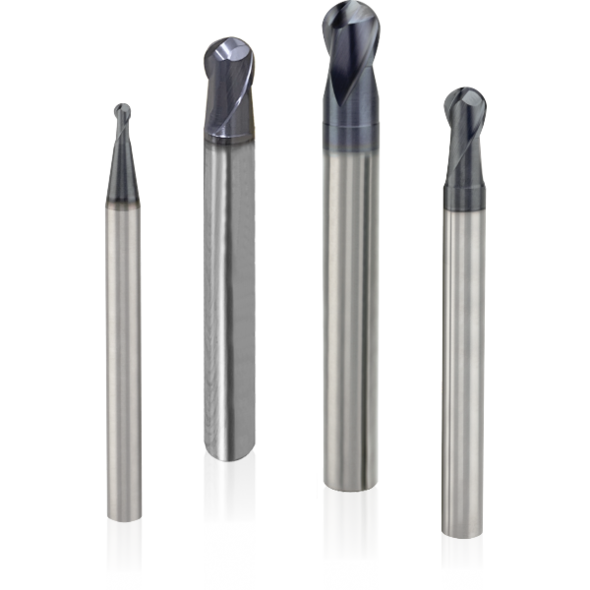

Turbo-Carb End Mill Group Picture

Features

Flute

End Mill icon
  • Short flute length and a rigid design to reduce deflection.

End Geometry

Ball nose End Mill icon
  • S-Gash Ball geometry minimizes load and heat produced during the cutting process, ultimately enhancing tool life.

Machining

End Mill icon
  • Ideal for machining complex contoured shapes in hardened steels.
Coatings
Ti-Namite-x logo
  • The structural design of Ti-Namite-X is adapted to meet a diverse range of applications; everything from high- and low-alloy steels to hardened materials (up to 65 HRC core hardness). Ti-Namite-X is suitable for operations which require high cutting speeds, high temperatures at the cutting edge, and high metal removal rates.
Turbo-Carb Ball nose End Mill white line drawing

Series Details

Lineup Details

  • Cutting Diameter: 1/32"-3/4" | 1,0 mm - 20,0 mm
  • Length of Cut: 1/32"-3/4 | 1,0 mm - 20,0 mm
  • Overall Length: 3"-6 1/2" | 76,0 mm - 165,0 mm
  • Shank Diameter: 1/4"-3/4" | 6,0 mm - 20,0 mm
  • Reach: 1/16"-1 1/2" | 2,0 mm - 40,0 mm
  • Coating: Ti-NAMITE-X

Primary Material Applications

  • Cast Iron ≥ 45 HRc
  • Hardened Steel < 45 HRc
  • Hardened Steel > 55 HRc

Industry Applications

aerospace icon

Aerospace

medical icon

Medical

power generation icon

Power Generation

automotive icon

Automotive

Mold and die icon

Mold & Die

Casting and foundries icon

Casting & Foundries

General engineering icon

General Engineering

Secondary Material Applications

  • Steel ≤ 45 HRc
  • Stainless Steel ≤ 45HRc
  • Cast Iron ≤ 45HRc
  • High Temp Alloys
  • Titanium Alloys ≤ 45 HRc
  • Non-Ferrous

Resources

Download

Tooling matrix brochure cover image

Tooling Matrix

Download

Turbo-Carb speed and feed brochure cover image

Turbo Carb

Speeds / Feeds

Turbine blade manufactured on a 5th axis CNC machine and an end mill.
