EXTREME
PLUNGING & RAMPING

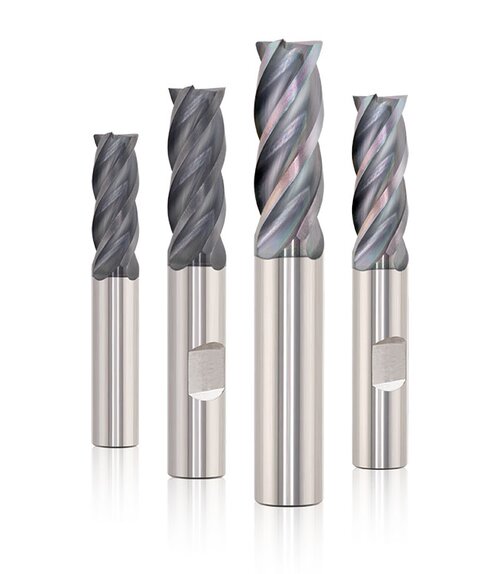

Z-Carb XPR | Series ZR
The Z-Carb XPR is engineered to push your machining limits. Designed for advanced techniques like plunging, ramping, and helical interpolation, its unique end teeth design and variable geometry allow for higher speeds and feeds while minimizing chatter and vibrations. Crafted from premium solid carbide, it offers exceptional chip evacuation and flawless finishes, even at depths up to 2xD. This versatile tool reduces tool changes and downtime, enhancing productivity across various materials and operations, from roughing to finishing.
Features
End Geometry
Four flute open end tooth design facilitates smooth and efficient chip evacuation when used in axial applications such as plunging, ramping, and helical interpolation
Wiper
End teeth wiper flat increases corner strength and significantly improves workpiece floor surface finish
Fluting, Helix, & Rake
Featuring variable helix, rake, and flute indexing to eliminate harmonics, suppress chatter, produce an ideal chip shape, and control cutting zone temperature
The specialized flute shape provides excellent chip evacuation at up to 2xD depth of cut
MEGACOAT NANO: The nano-layers of this coating provide high hardness for exceptional wear resistance and high oxidation resistance that allows for operation at high temperatures. The layered structure also gives the coating the toughness required to resist chipping.
Ti-NAMITE-X: Meets a diverse range of applications from high- and low-alloy steels to hardened materials. It is suitable for operations that require high cutting speeds, high temperatures at the cutting edge, and high metal removal rates
Series Details
Lineup Details
- Cutting Diameter: 1/4" - 3/4" | 6,0mm - 20,0mm
- Length of Cut: 1/2" - 1-1/2" | 13 mm - 38,0 mm
- Overall Length: 2-1/2" - 4" | 57,0 mm - 104,0 mm
- Shank Diameter: 1/4" - 3/4" | 6,0mm - 20,0mm
- Corner Radius: 0.010" - 0.250" | 0,3mm - 5,0mm
- Coating(s): Ti-NAMITE-X, MEGACOAT NANO
- Special Options: Weldon Flat, Square, Corner Radius, Stub and Regular Length
Primary Material Applications
- Steel ≤ 40 HRc
- Stainless Steel ≤ 35 HRc
- Cast Iron ≤ 26 HRc
- High Temp Alloys ≤ 43 HRc
- Titanium Alloys ≤ 47 HRc
- Hardened Materials ≤ 45 HRc
Industry Applications
Aerospace
Medical
Power Generation
Automotive
Mold & Die
Casting & Foundries
General Engineering
Firearms
